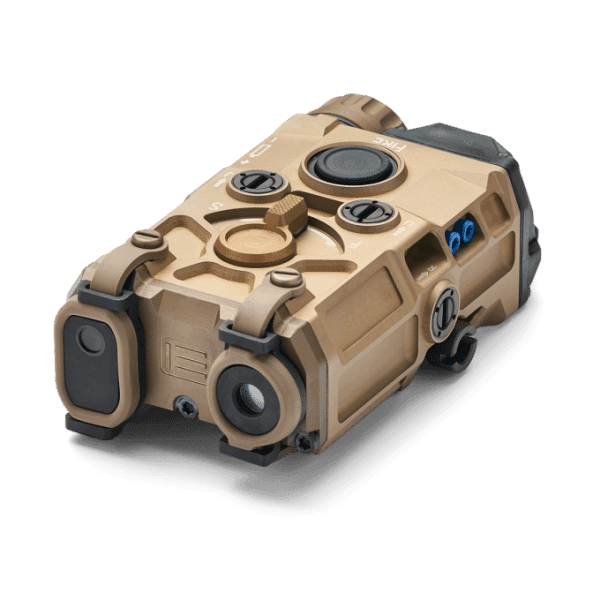

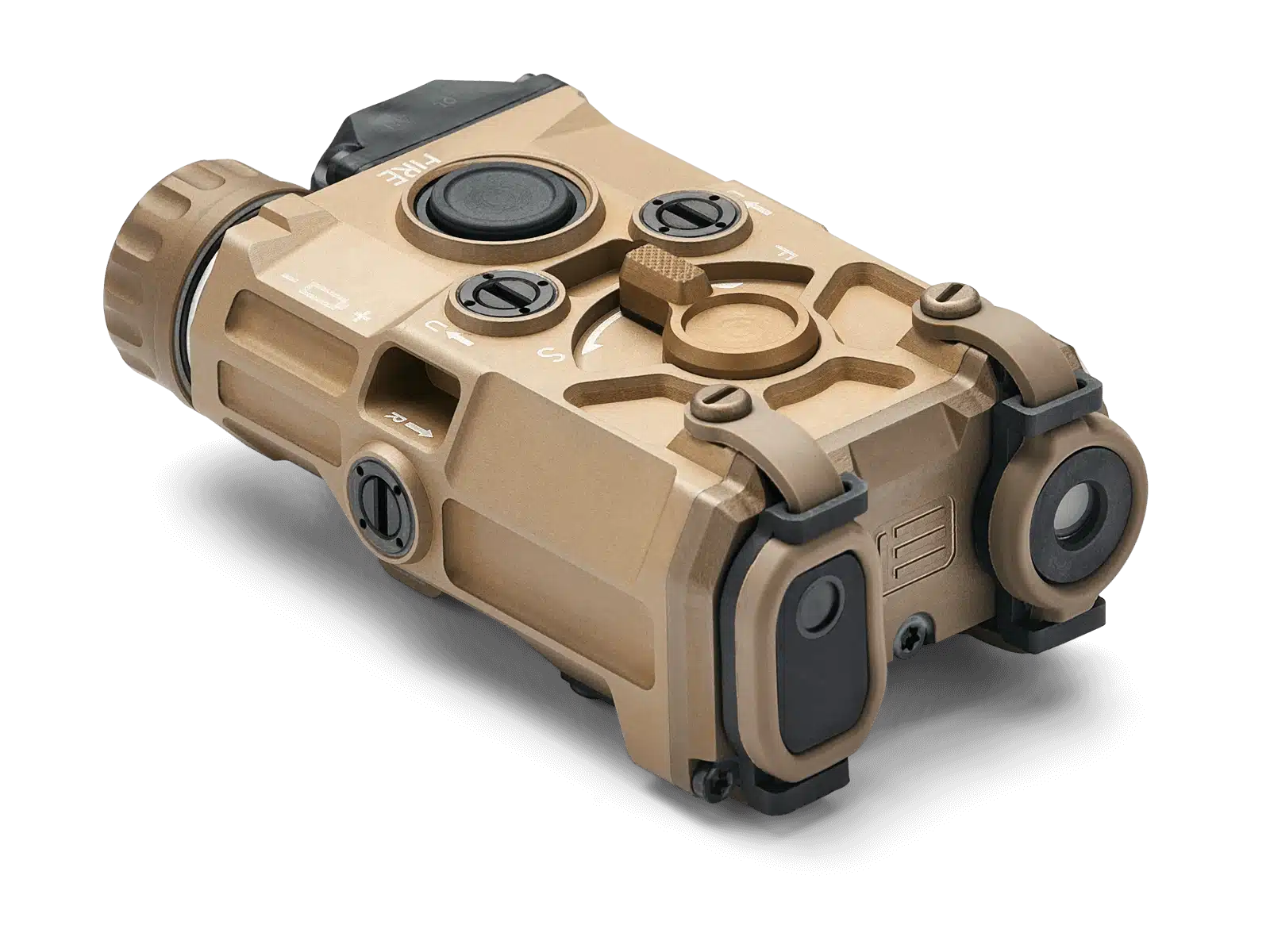

EOTECH OGL
$5,495.00
- VCSEL Illuminator variable beam divergence: ~23 MRAD to ~115 MRAD
- ~0.2 MRAD windage and elevation adjustments, 50 MRAD total
Description
EOTECH OGL Performance Characteristics
Technical Specifications
Overview
The design for the EOTECH On-Gun Laser (OGL) focuses on human performance factors under extreme stress creating the premium choice for professional users. The OGL Standard Power (restricted to MIL/LE use) is powered by a single CR123 battery providing up to 9 hours of continuous run time. The machined aluminum housing provides extreme durability in a compact package roughly the size of a standard deck of playing cards.
The IR illuminator utilizes a high performing Vertical-Cavity Surface-Emitting Laser (VCSEL) diode creating a clean beam and allowing quick adjustments from spot to flood. The ergonomic (patent pending) lever is unique to the OGL and allows professionals to adjust their illumination needs instantly, all while maintaining superior situational awareness.
Order Codes:
- EOT-OGL-S-T (Standard Power Tan)
- EOT-OGL-S-G (Standard Power Gray)
Features:
- Standard power (MIL/LE) mode
- All aluminum housing for extreme durability
- Compact design, similar in size to a deck of cards
- Enhanced ergonomics
- Shared optical bench for visible green and IR aiming lasers
- VCSEL Illuminator variable beam divergence: ~23 MRAD to ~115 MRAD
- ~0.2 MRAD windage and elevation adjustments, 50 MRAD total
- Crane-type laser port
- Modlite ModButton Lite 7″ switch included
- Tethered protective caps/pattern generators
L X W X H
4.1” x 2.3” x 1.5” / 102.9 mm x 58.2 mm x 37.8 mm
Weight
8 oz / 227 grams
| Visible Aim Laser | Specs at 23°C (72°F) | Max Safety Class |
| Output Power Low | ≤ 4.7 mW | 3R |
| Output Power High | ≤ 30 mW | 3B |
| Beam Divergence | < 0.5 MRAD | |
| Wavelength | 520 (±10) nm |
| NIR Aim Laser | Specs at 23°C (72°F) | Max Safety Class |
| Output Power Low | ≤ 0.7 mW | 3R |
| Output Power High | ≤ 35 mW | 3B |
| Beam Divergence | < 0.5 MRAD | |
| Wavelength | 850 (±10) nm |
| NIR Illuminator | Specs at 23°C (72°F) | Max Safety Class |
| Output Power Low | ≤ 2.7 mW | 3R |
| Output Power High | ≤ 105 mW | 3B |
| Beam Divergence | SPOT ≥23, FLOOD ≥105 MRAD | |
| Wavelength | 860 (+10/-30) nm |
