MATE 640 50mm
MATE 640 50mm 4
MATE 640 50mm 3
MATE 640 50mm 2

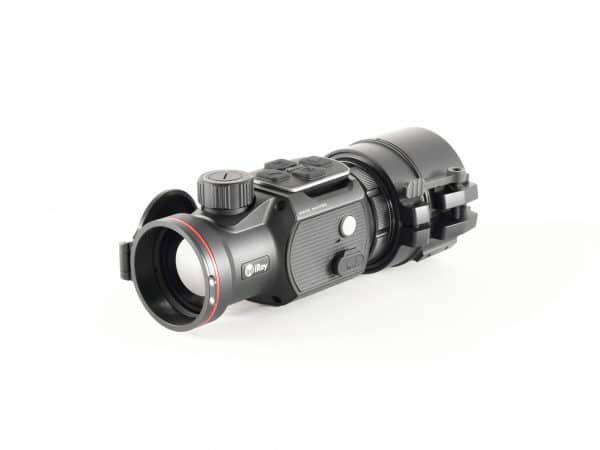

iRAY MATE 640 50mm Clip-On Thermal Weapon Sight

$5,999.00

Sensor Pixel Size: 12μm
Objective Focal Length: 50mm
Sensor Frame Rate: 50hz
Detection Range: 2400 Yards
Device Technology: Thermal Imaging
Sensor Resolution: 640×512
Optical Magnification: 1X
Digital Magnification: 8X, stepped
Onboard Recording: Yes
Objective F#: 1.1
Objective Diameter: 50mm
SKU: 21721 Category:

Description

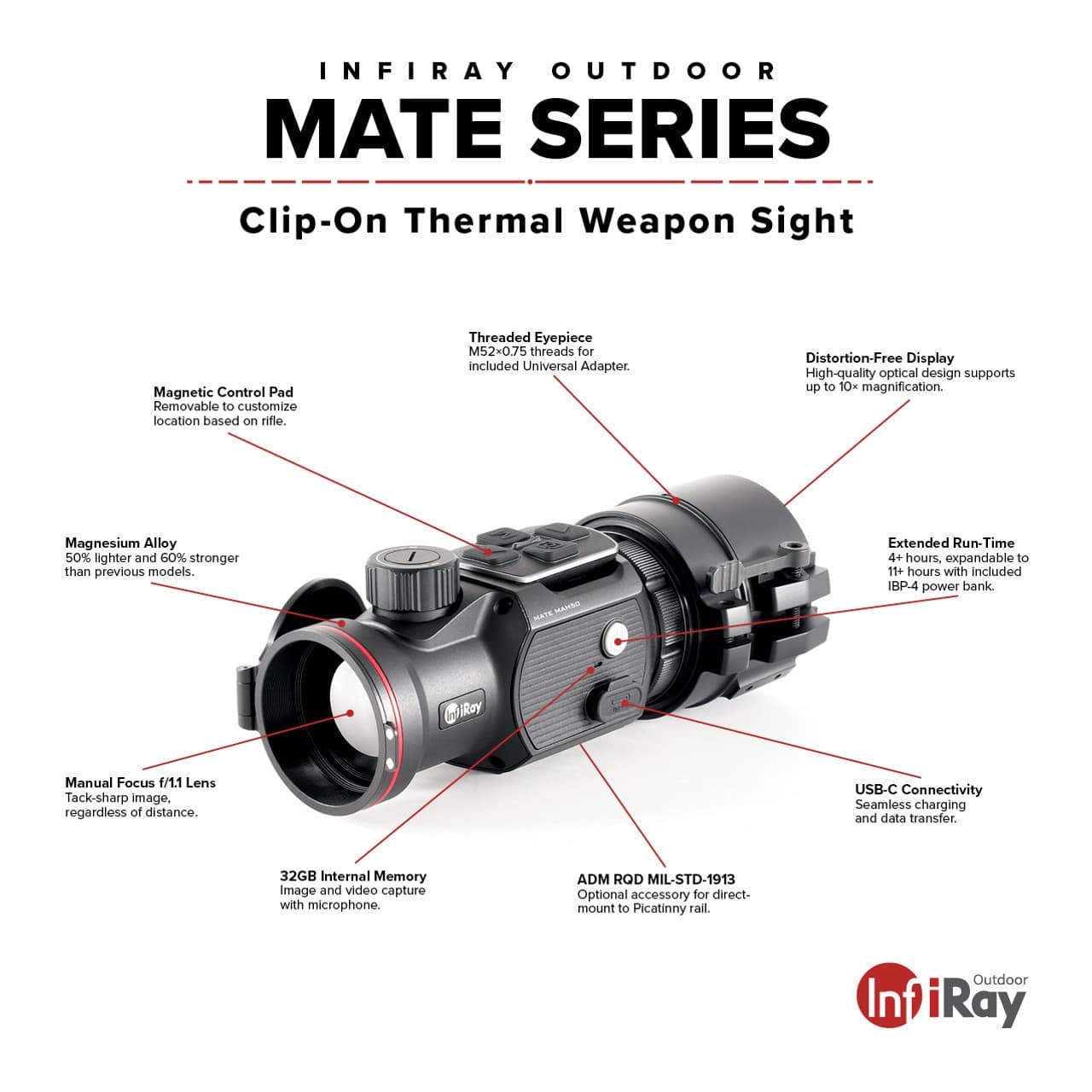

The InfiRay Outdoor MATE Series thermal clip-on brings an all-new level of versatility to your existingday scope. With a high-performance 12 μm detector, magnesium alloy housing, distortion-free display, and removable control pad, the MATE series ensures a precise and repeatable transition when dayturns to night. The MATE can be mounted directly to the objective of your day scope or be attached via MIL-STD-1913 Picatinny rail.

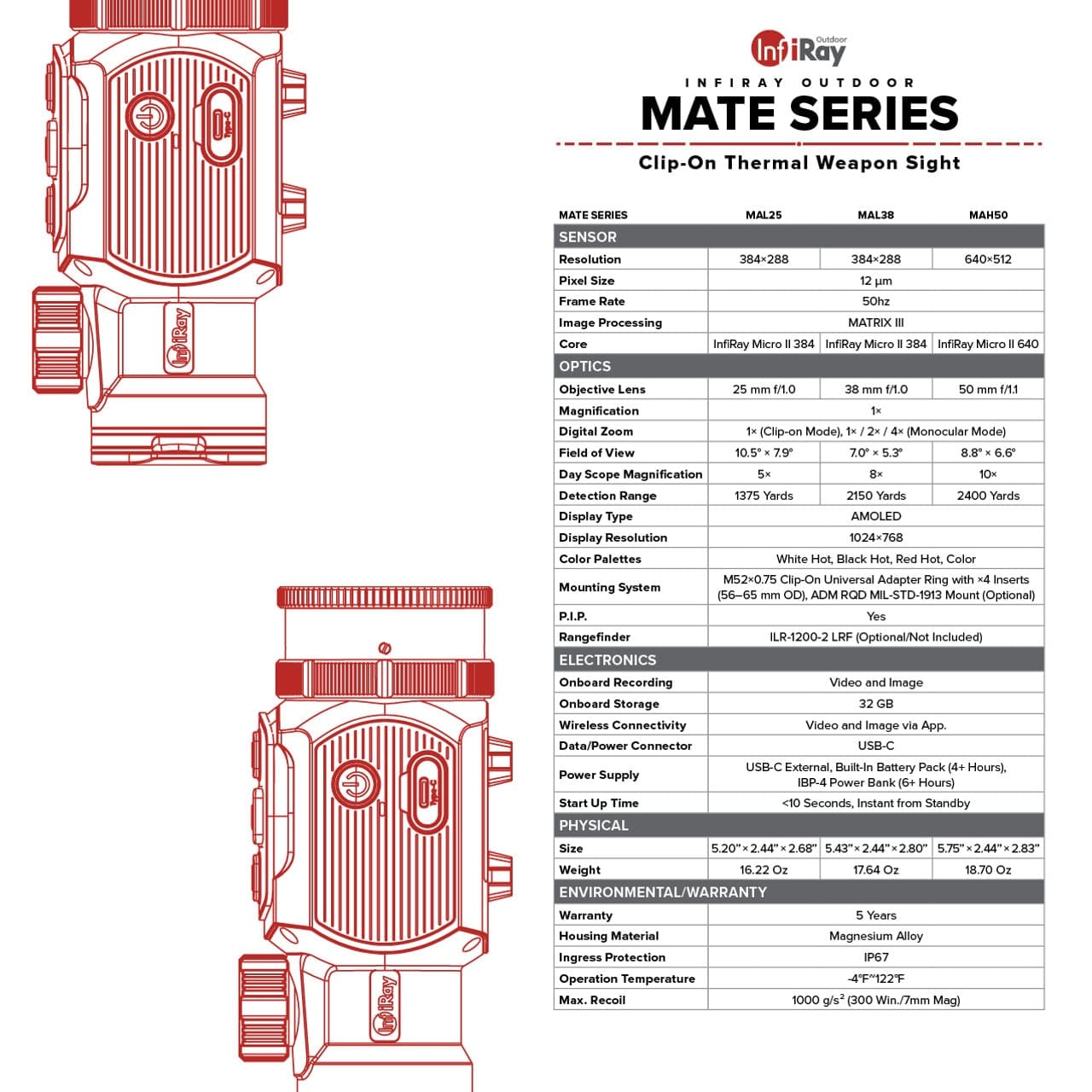

  • Optics

    Objective Focal Length

    50mm

    Detection Range

    2400 Yards

    Objective Lens Material

    Germanium

    Optical Magnification

    1X

    Digital Magnification

    8X, stepped

    Focusing Mechanism

    Manual Focus

    Display Type

    AMOLED

    Vertical Angular Field of View

    6.6°

    Horizontal Angular Field of View

    8.8°

    Objective F#

    1.1

    Objective Diameter

    50mm

    Display Resolution

    1024×768

  • Features & Performance

    Wifi

    Yes

    Image Capture

    Yes

    Mobile App

    Yes

    Connector Output

    Power/Data

    Connector Type

    USB-C

    Video Output

    Analog RS-170/NTSC

    Onboard Recording

    Yes

    Warranty

    5 Years

    Startup Time

    Under 10 Seconds

    Rangefinder

    ILR-1200-2 LRF (Optional/Not Included)

    Color Palettes

    White Hot, Black Hot, Red Hot, Color

    Storage Capacity

    32GB

    User-Updatable Firmware

    Yes

    Power Source

    Built-In Battery Pack (4+ Hours),IBP-4 Power Bank (6+ Hours)

    Stand-by Mode

    Yes

    External Power Source

    USB-C

    Country of Manufacture

    China

  • Environmental Specifications

    Recoil Rating

    1000 g/s² (300 Win./7mm Mag)

    Operating Temperature Range

    -4°F~122°F

    Ingress Protection

    IP67

  • Physical

    Mounting Interface

    Picatinny STD-1913 rail

    Housing Material

    Magnesium Alloy

    Weight

    18.70

    Height

    2.83

    Width

    2.44

    Length

    5.75

  • Sensor Specifications

    Sensor Type

    InfiRay MICRO II

    Sensor Pixel Size

    12μm

    Thermal Sensitivity

    <25mk

    Non-Uniformity Correction (NUC)

    Manual, Automatic, Semi-Automatic

    Spectral Response

    8-12 Microns

    Sensor Frame Rate

    50hz

    Device Technology

    Thermal Imaging

    Sensor Resolution

    640×512
