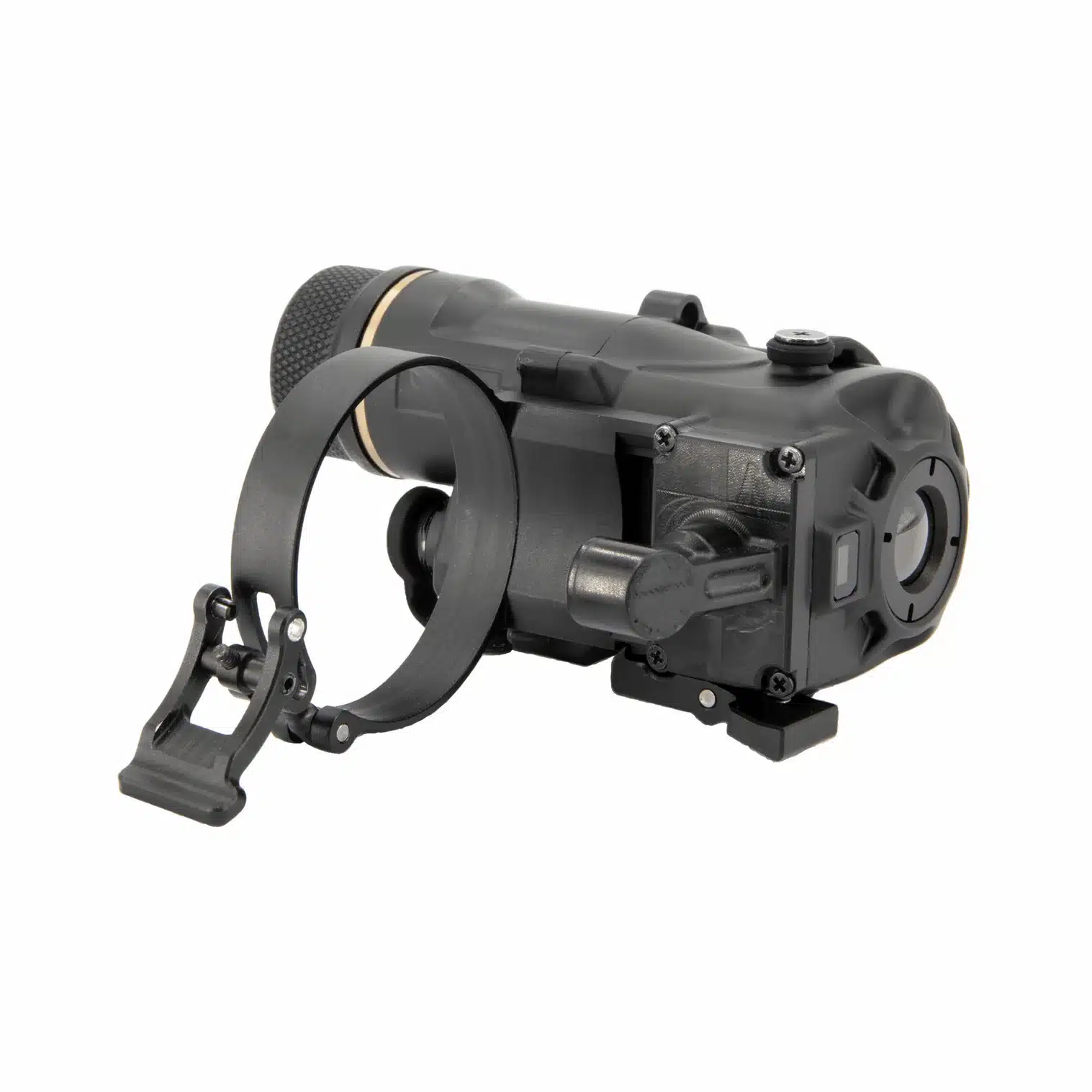

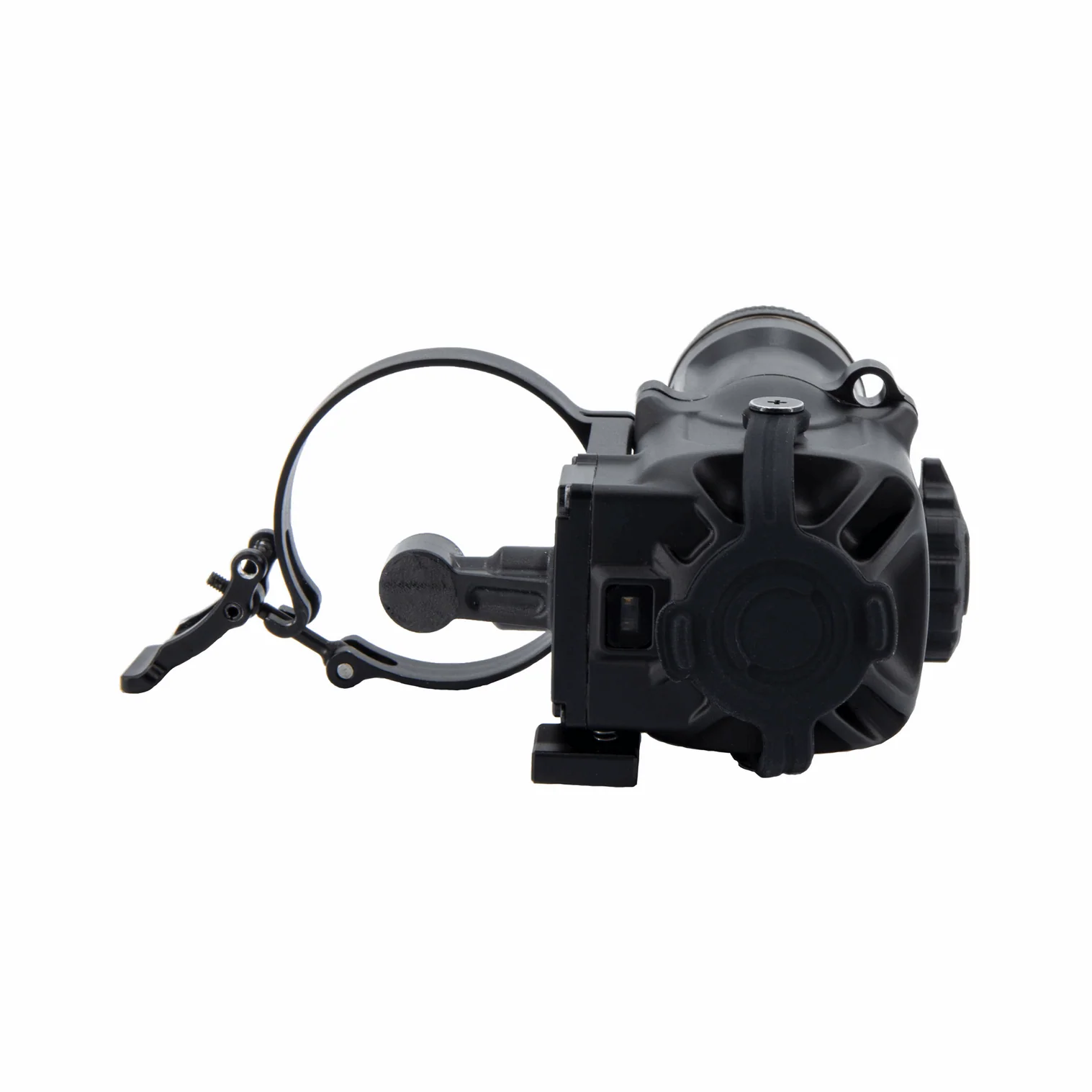

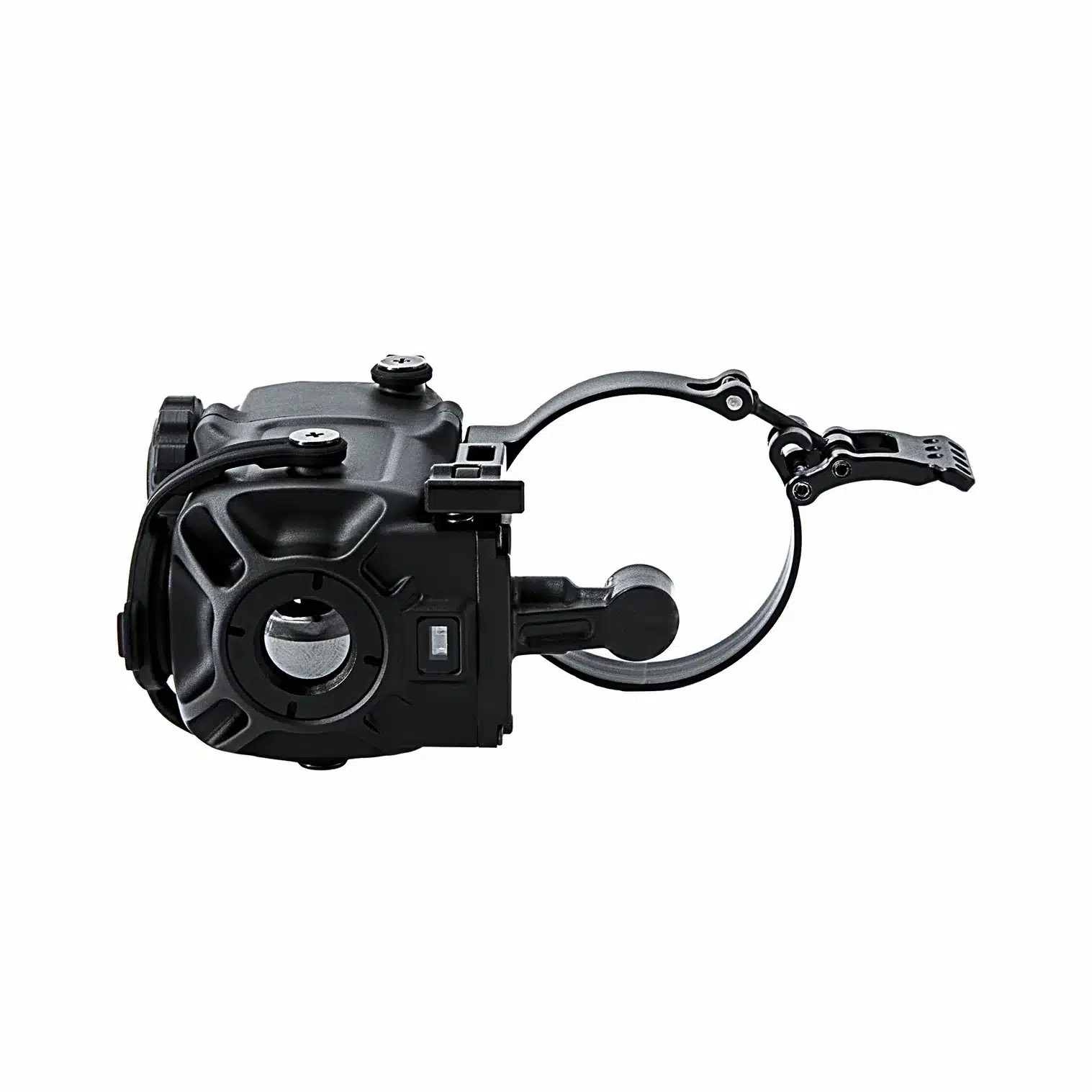

Jerry C5 Fusion Thermal Clip On
$3,999.00
Latest 12μm HD infrared module, stronger, lighter, and smaller.
Out of stock
Description
Features of Jerry-C Thermal Monocular Helmet Mount
- Ceramic packaged HD thermal imaging.
- Latest 12μm HD infrared module, stronger, lighter, and smaller.
- Ultra-low load, quick installation, and uninstallation.
- Quick removal interface allows plug-and-play infrared fusion function.
- Fusion display and threat recognition.
- Multiple application modes facilitate hot target searching and displaying, helping users to grasp the initiative.
Specifications of Jerry-C Thermal Monocular Helmet Mount
| Detector Type | Uncooled VOx infrared detector | |
| Detector Resolution | 640×512 | |
| Pixel Size | 12μm | |
| FOV | 30.5 | |
| View Ratio (40° night vision device) | 0.765 | |
| Display Mode | Manual/Automatic | |
| Image Mode | White-hot/Highlight/Outline | |
| Power Supply | CR123,18650, Battery Pack | |
| Weight | 78g/110g | |
| Interface | External power supply/Analog video (PAL)/RS232 | |
| Operating Temperature | – 40°C~+60°C | |
| Ingress Protection Rating | IP67 | |
