L3/ INSIGHT NAVSEA LA5E/PEQ ATPIAL UHP ATP-000-A31

Description

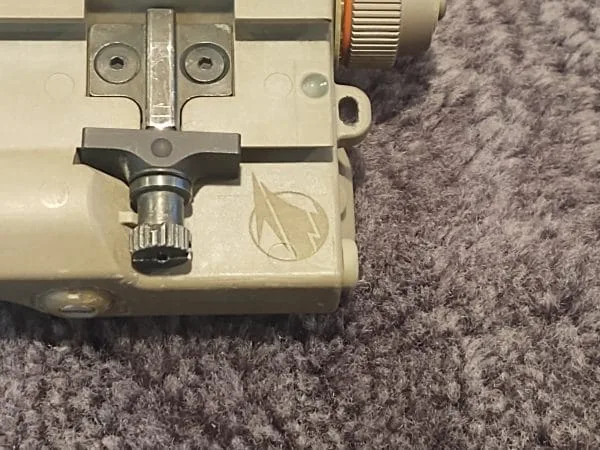

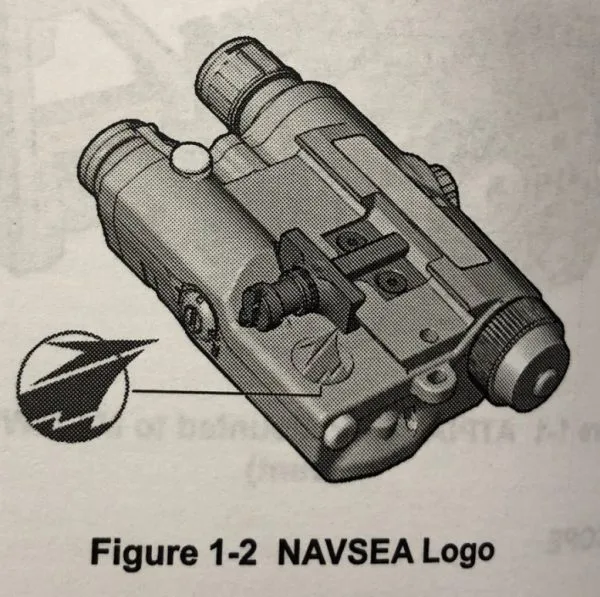

ATP-000-A31 is shock hardened to ensure interoperability with the Special Operations Forces Combat Assault Rifle (SCAR). The shock hardened ATPIAL UHP can be differentiated from other  ATPIAL UHP variants by the presence of a laser-engraved NAVSEA log on the underside of the housing.

Ultra High Power Advanced Target Pointer/Illuminator Aiming Laser

Manufacturer:L3/ Insight Technology

NSN:5855-01-533-0555

Dimensions:4.7″(L) x 2.8″(W) x 1.6″(H)Weight:7.5 oz. w/

BatteryPower:One (1) 3V DL123A

BatteryBattery Life:>3 Hours (Dual High)

Waterproof:6 Meters for One Hour

Laser Spec:—————————————————-

IR Laser Class:1 (Low), IIIB (High)IR Laser Output:0.6mW (Low), 165mW (High)IR

Laser Beam:0.5 mRad DivergenceIR Laser Wavelength:820nm – 850nmIR Laser Range:>600 Meters (Low), 2,000 Meters (High)

Visible Laser Spec:—————————————————-

Visible Laser Class:IIIR (Low), IIIB (High)Visible Laser Output:4.5mW (Low), 5-45mW (High)Visible Laser Beam:0.5 mRad DivergenceVisible

Laser Wavelength:625nm – 665nmVisible Laser Range:>150 Meters (Day), 2,000 Meters (Night)IR Illuminator Spec:—————————————————-

IR Illuminator Class:IIIR (Low), IIIB (High)IR Illuminator Output:3.0mW (Low), 80mW (High)IR Illuminator Beam:1-105 mRad DivergenceIR Illuminator Wavelength:820nm – 850nmIR Illuminator Range:>600 Meters (Low), 4,000 Meters (High)

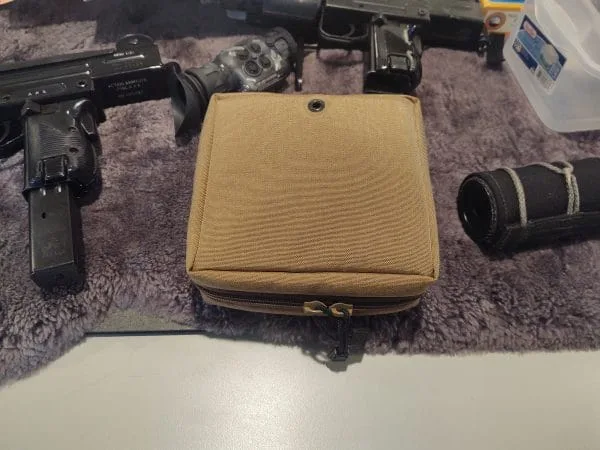

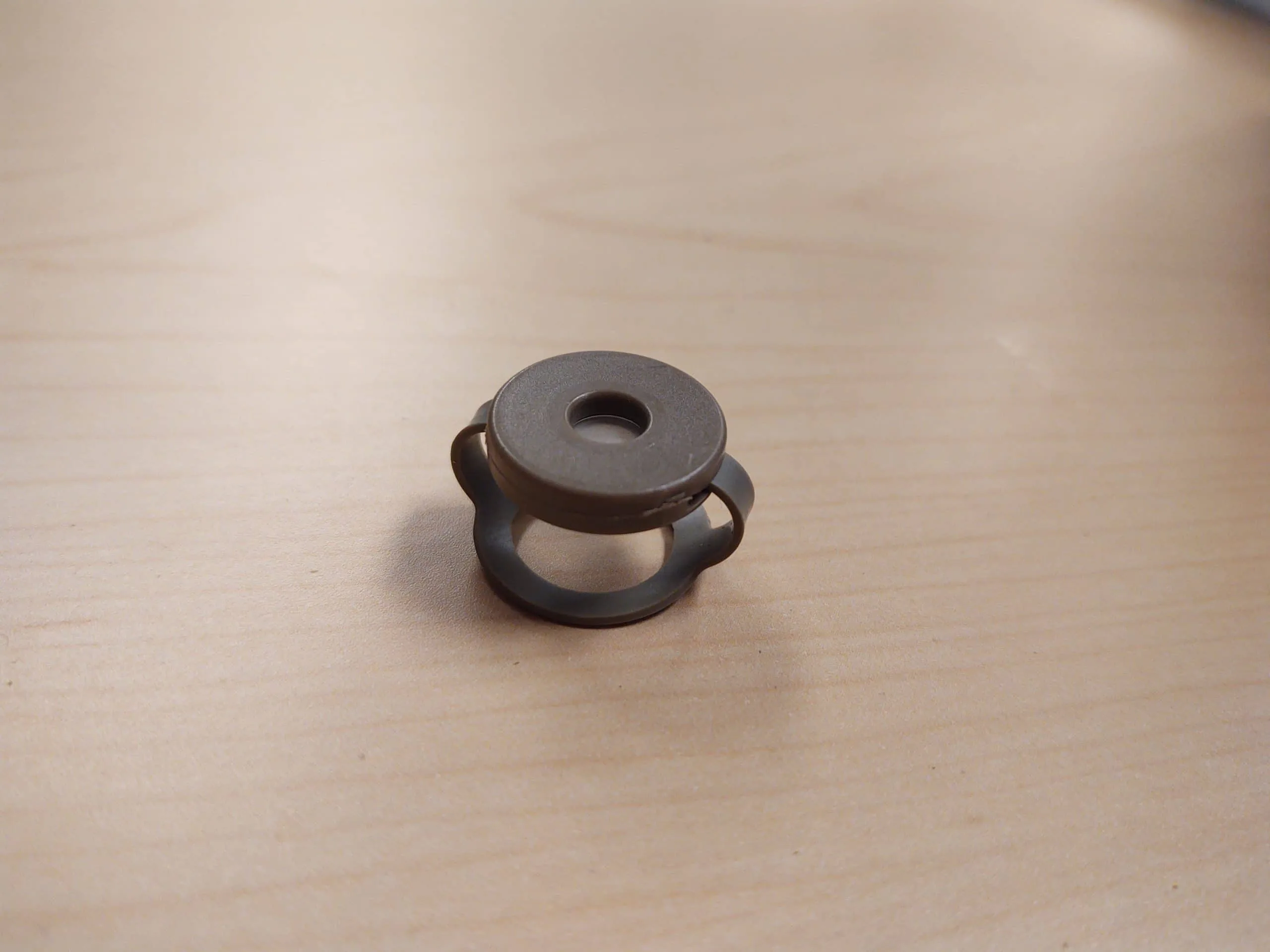

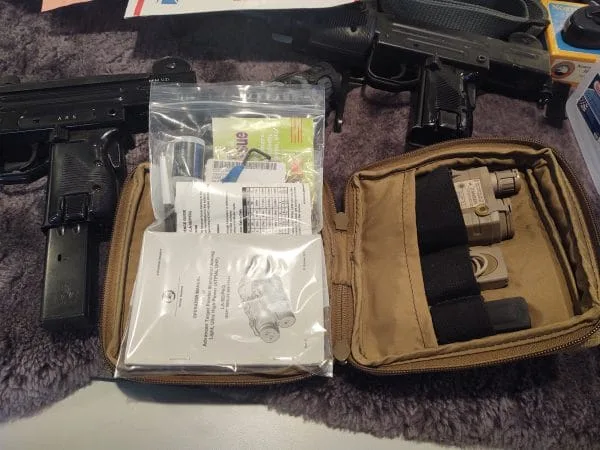

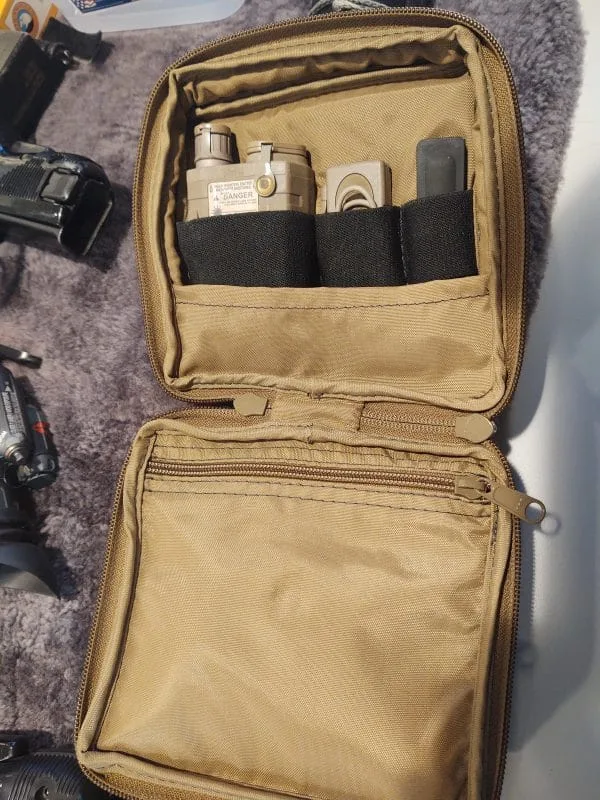

Includes:Soft Carry Case, Operator’s & Unit Maintenance Manual, Quick Reference Card, One (2) 3V Battery, Allen Wrench (3/32 Hex), Illuminator Diffuser, Aiming Exit Port Cover, Remote Cable Switch, Velcro Tape Fastener, Optical Pattern Generators
