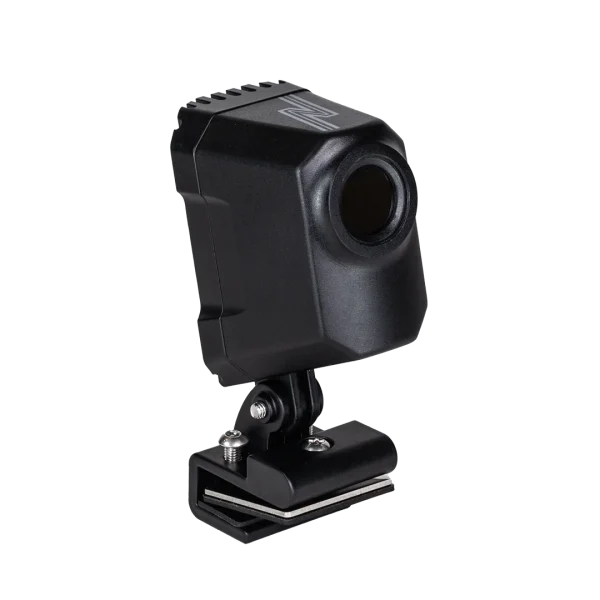

NightRide TrailBlazer 640 – 640 x 512 – 13mm lens
$4,250.00
The versatility and ease of use gives you thermal sight wherever you roam.
Description
The NightRide Trailblazer is a small, lightweight infrared camera, using heat signatures to give you a view 1/4 miles down the road through dust, rain, snow, fog, smoke, and complete darkness. The perfect device for any commercial driver, daily driver or outdoorsman – the versatility and ease of use gives you thermal sight wherever you roam.

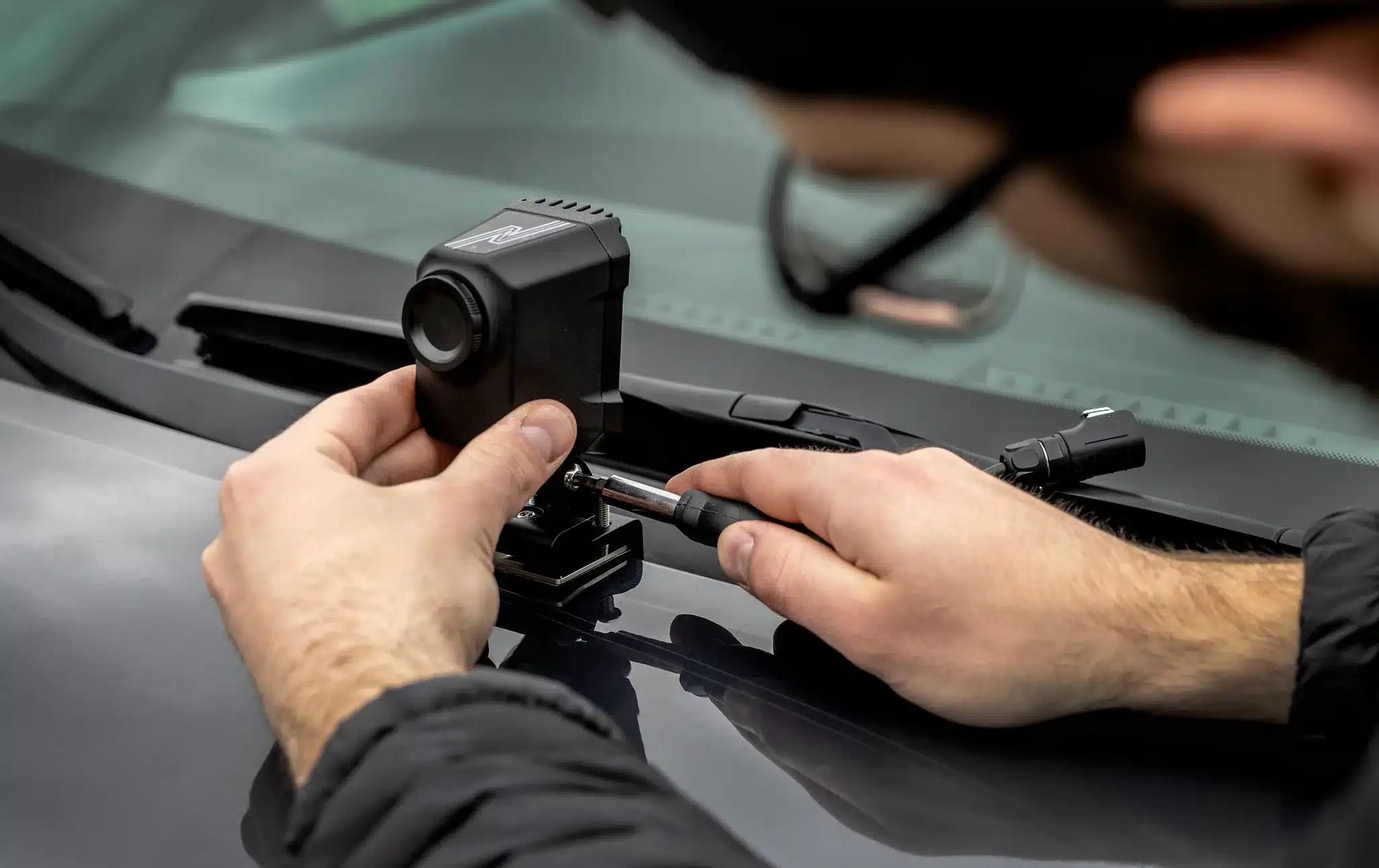

Install is a pain-free 5 minutes, and can be popped onto any vehicle – from your car or truck to ATV or motorcycle!

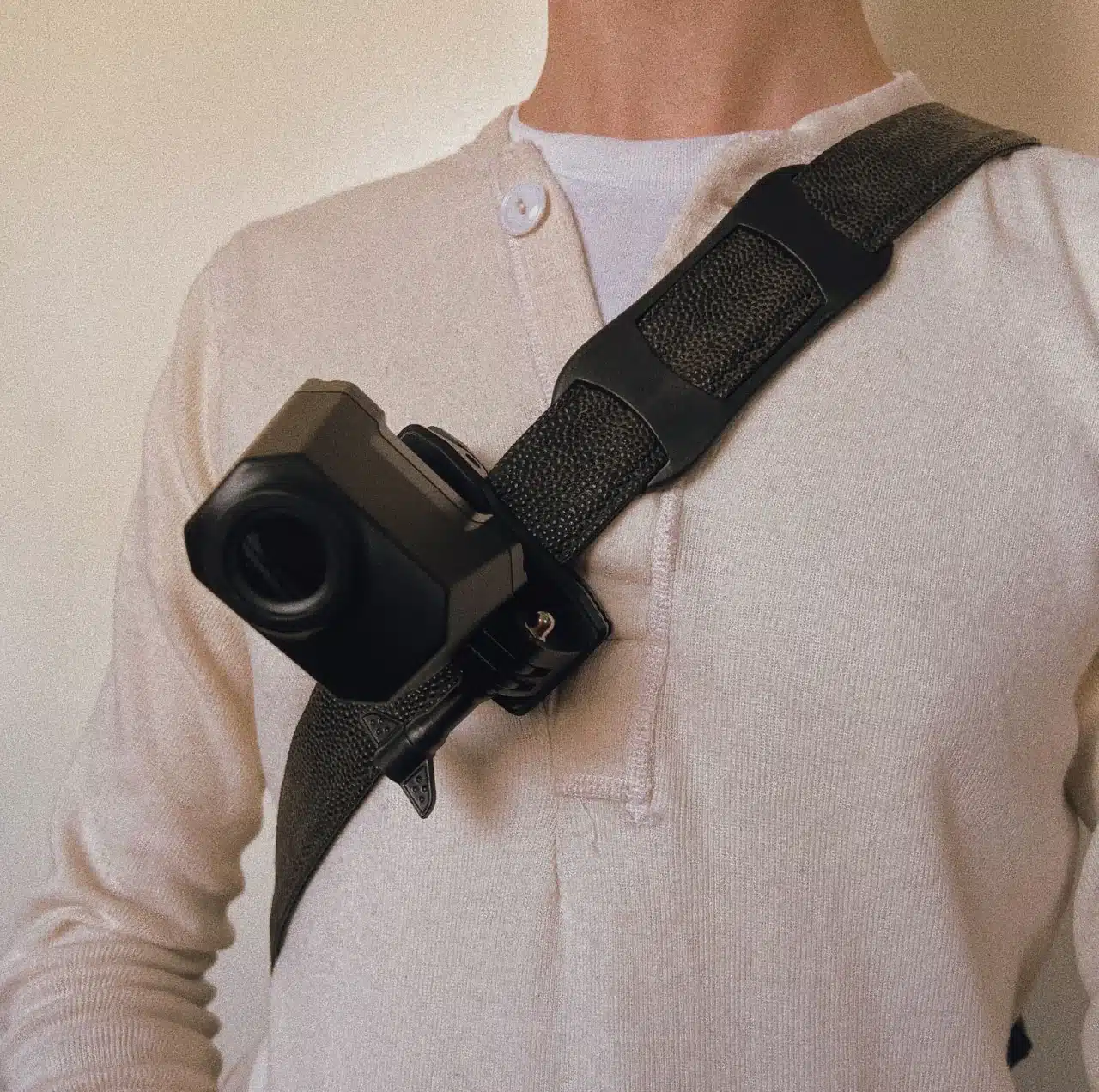

Or can be taken on foot with a GoPro mount attached to your helmet, or clipped onto a backpack when attached to an auxiliary battery pack!
MAIN FEATURES

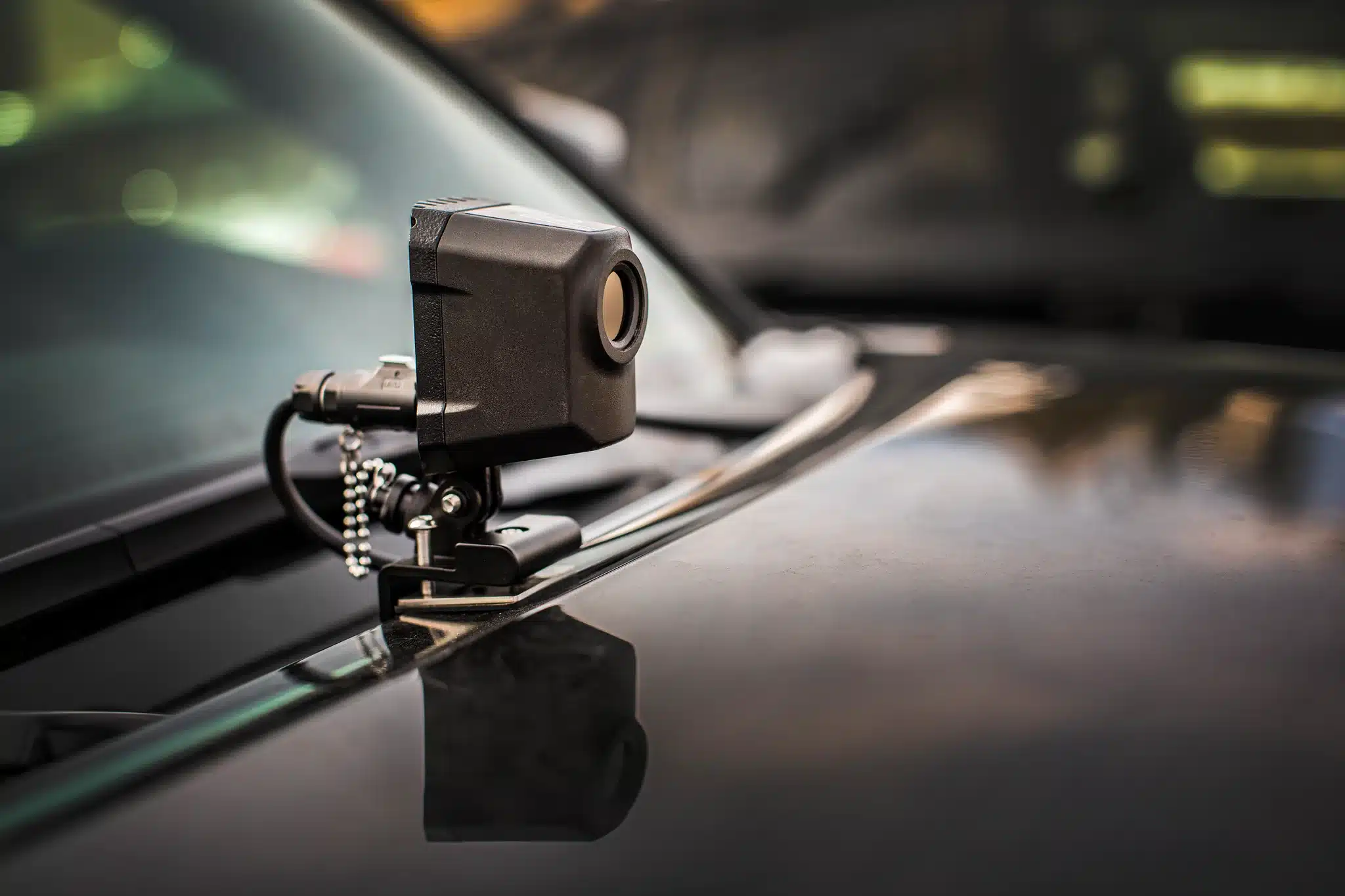

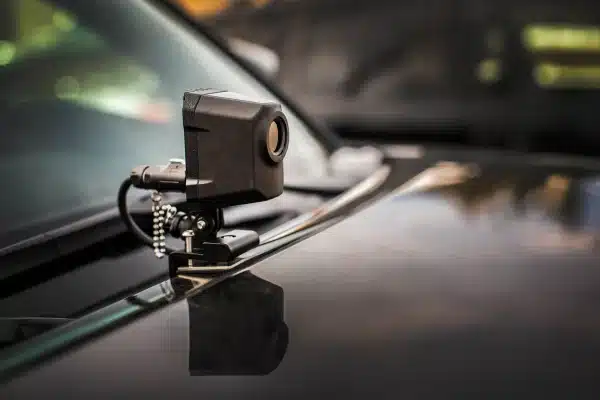

- Vehicle Hood Mount Included
- Wi-Fi Hotspot connection to display
- Portable with auxiliary battery pack (Not Included)
- 5 min. Install
- Always recording / Event recording
- ACCESSORIES
- Hood Mount – Standard
- Hood Mount Tools and Accessories
- Power Cable
- Velcro Tie (4x)
- Ring Connections
SPECIFICATIONS
- Dimensions: 100mm x 55mm x 80mm
- Operating Temperature Range: -40°F to +140°F
- Sealed Design: IP69
- Sensor Type: 640 x 512 uncooled Micro-bolometer.
- Field of View: 28° (H)
- FPS: 25hz
- Power Consumption: 4W
- Power Requirements: 12-16 VDC
| Detection | Recognition | Identification |
660m |
180m |
90m |
APPLICATIONS
Versatile mounting options provide a variety of exhilarating and illuminating experiences, including but not limited to:
– full vision for low/no light driving situations
– greatly increased road visibility for inclement/extreme weather
– accident avoidance and recording
– peace of mind for new or elderly drivers
– view of campsite for wildlife and security
– awesome footage of outdoor sports (snowboarding, skiing, mountain biking etc)
Not Certain Which NightRide to Choose?
*Table scrolls Horizontally
| Model | Resolution | Detection* (in Yards) | Recognition* (in Yards) | Identification* (in Yards) | Field of View | WiFi Frequency to Display | Wired via Ethernet | Remote Control | Mounting | Sample Use Cases |
| NightRide Trailblazer | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | No | No | GoPro, on/off vehicle | Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting |
| NightRide Trailblazer w Ethernet | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | No | GoPro, on/off vehicle | Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting |
| NightRide Trailblazer HighRes 640 | High | 660 | 180 | 90 | 28⁰ | 5 Ghz | Yes | No | GoPro, on/off vehicle | Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting |
| NightRide Sentinel | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | Hardwired Remote Control Pan | Permanent on LightBar or Vehicle Roof | Public safety, security, remote surveillance |
| NightRide Sentinel 640-13 | High | 660 | 180 | 90 | 28⁰ | 5 Ghz | Yes | Hardwired Remote Control Pan | Permanent on LightBar or Vehicle Roof | Public safety, security, remote surveillance |
| NightRide PRO-SL (Ring or Cableless) | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | No | Manual Pan/Tilt | Permanent on Police Spotlight | Police patrol cars |
| NightRide PRO-SL w Ethernet (Ring or Cableless) | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | Manual Pan/Tilt | Permanent on Police Spotlight | Police patrol cars |
| NightRide PRO-SL 640 (Ring or Cableless) | High | 660 | 180 | 90 | 28⁰ | 5 Ghz | Yes | Manual Pan/Tilt | Permanent on Police Spotlight | Police patrol cars |
| NightRide 360 Classic 384-13 | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
| NightRide 360 Classic 384-19 | Standard | 660 | 180 | 90 | 19⁰ | 2.4 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
| NightRide 360 Classic Telephoto 384-35 | Standard | 1200 | 330 | 165 | 10⁰ | 2.4 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
| NightRide 360 High Res – 640-19/Plus 640-19 | High | 960 | 240 | 120 | 23⁰ | 5 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
| NightRide 360 High Res Telephoto 640-35/Plus 640-35 | High | 1750 | 440 | 220 | 12⁰ | 5 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
* Detection
* Recognition
* Identification
