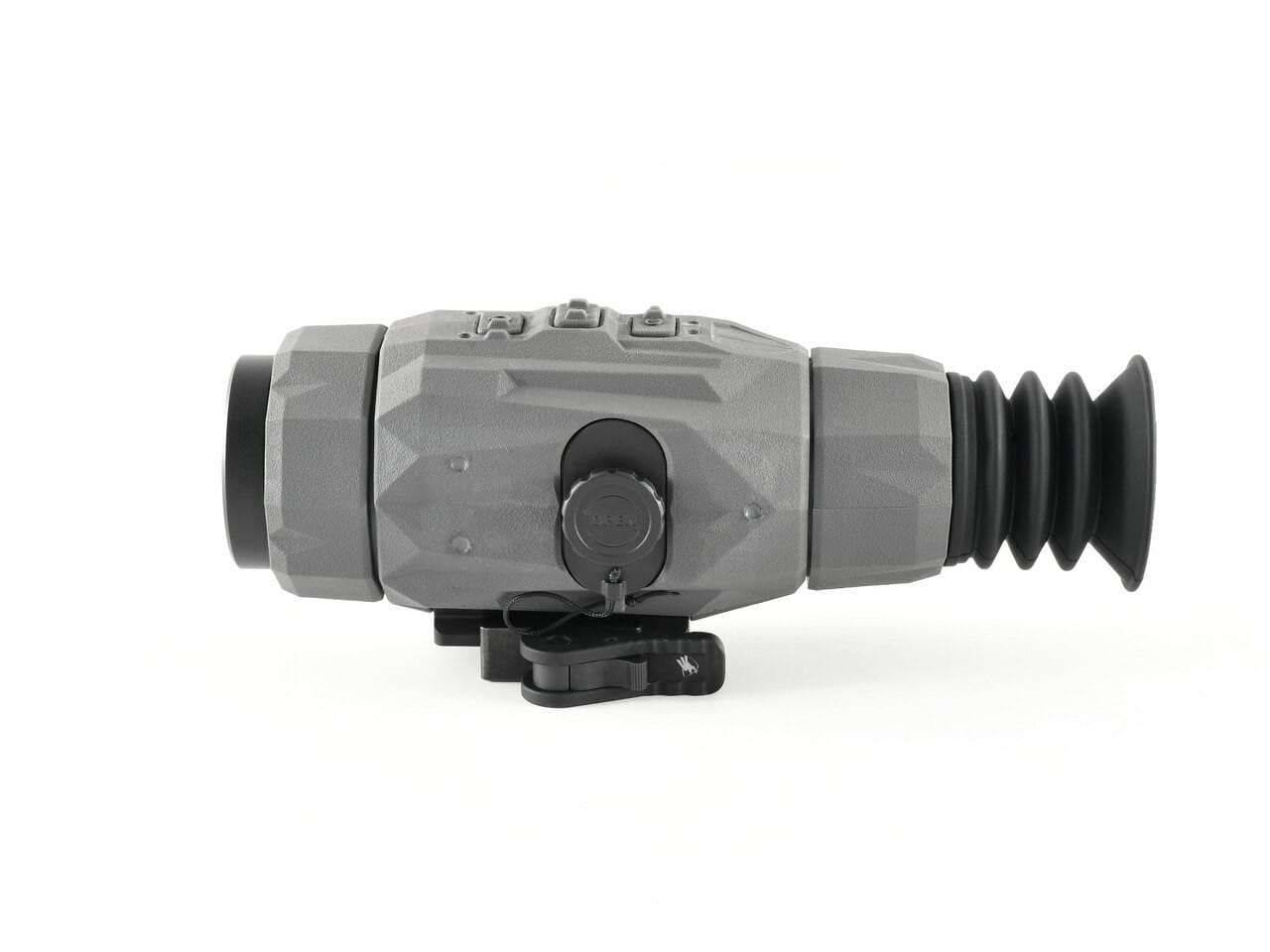

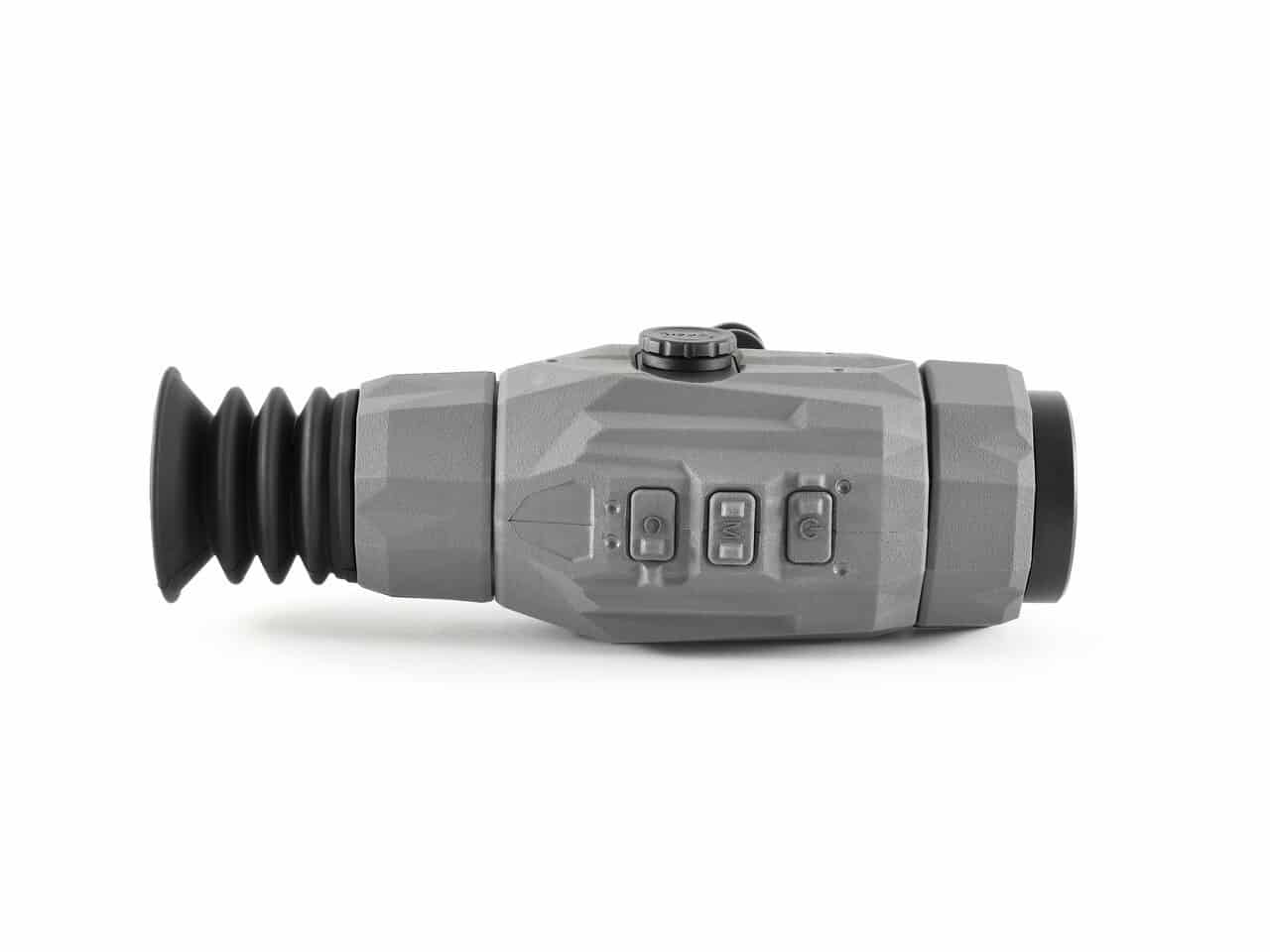

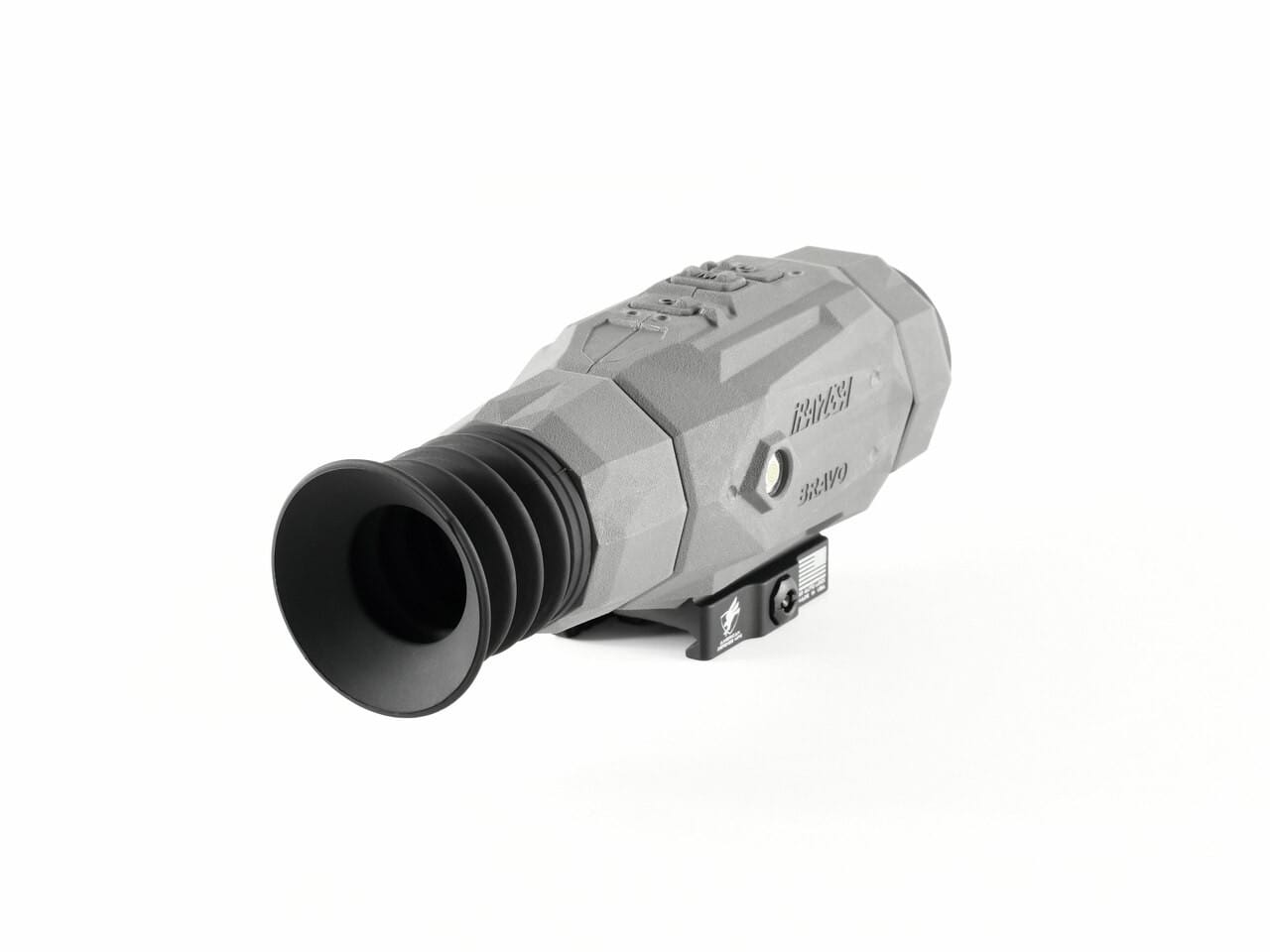

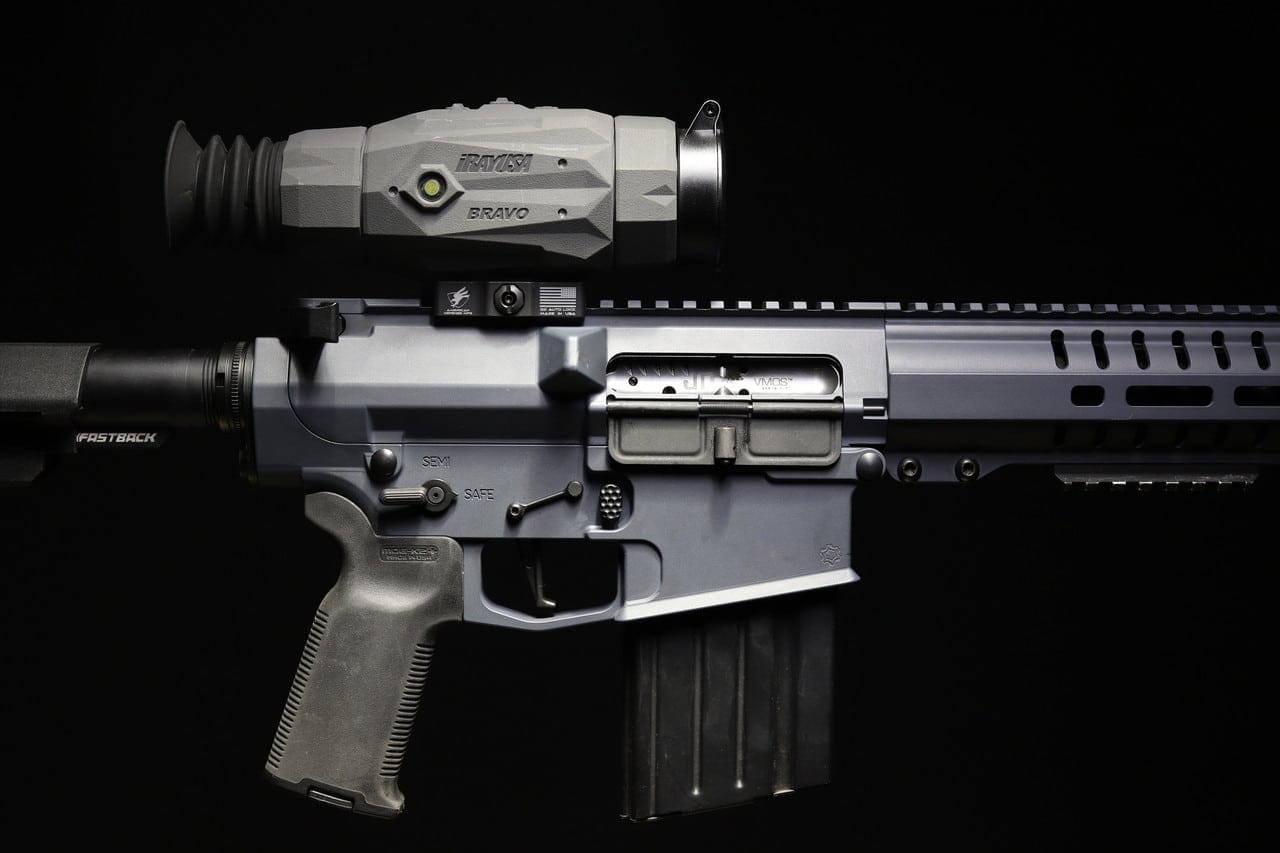

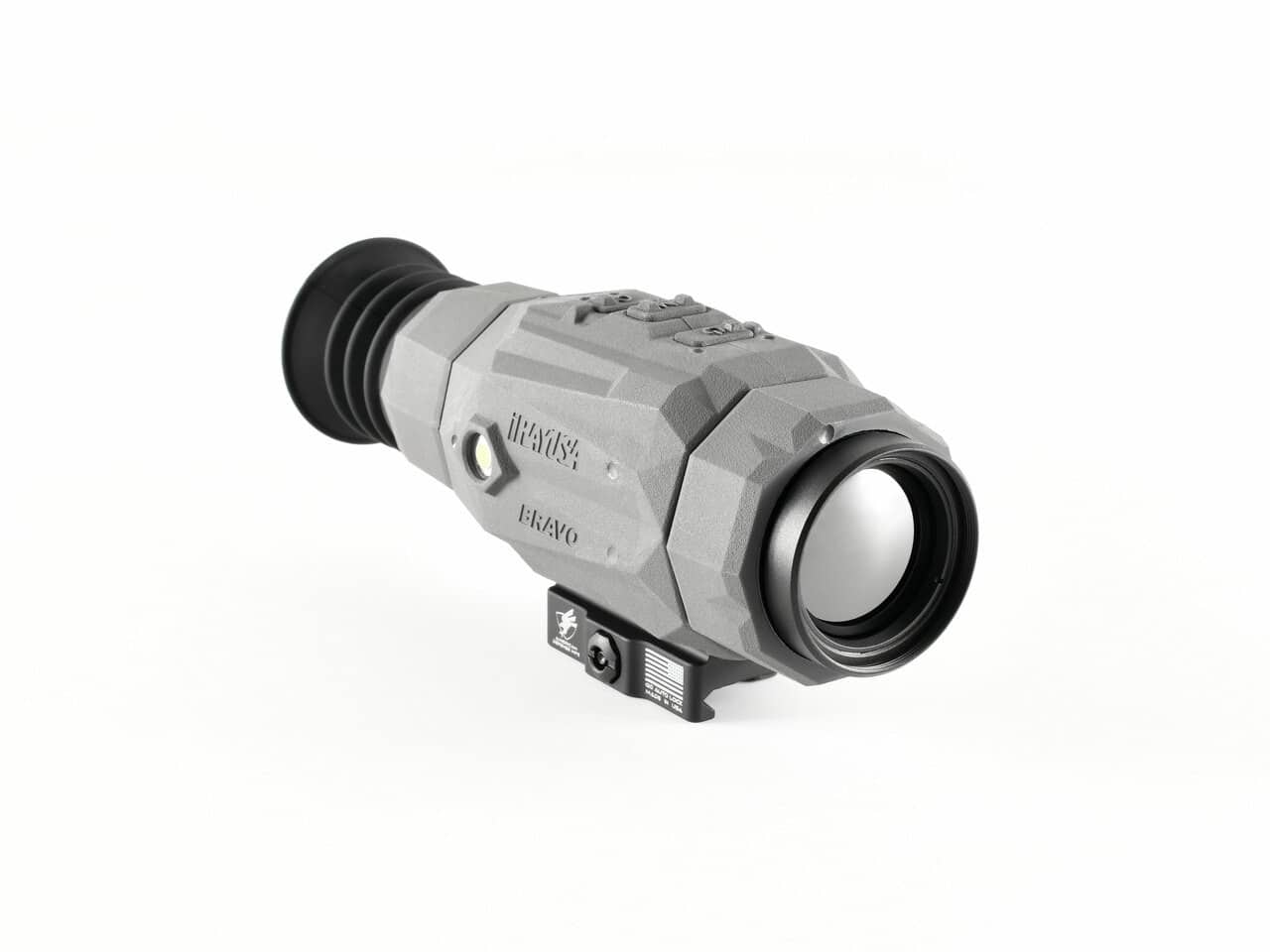

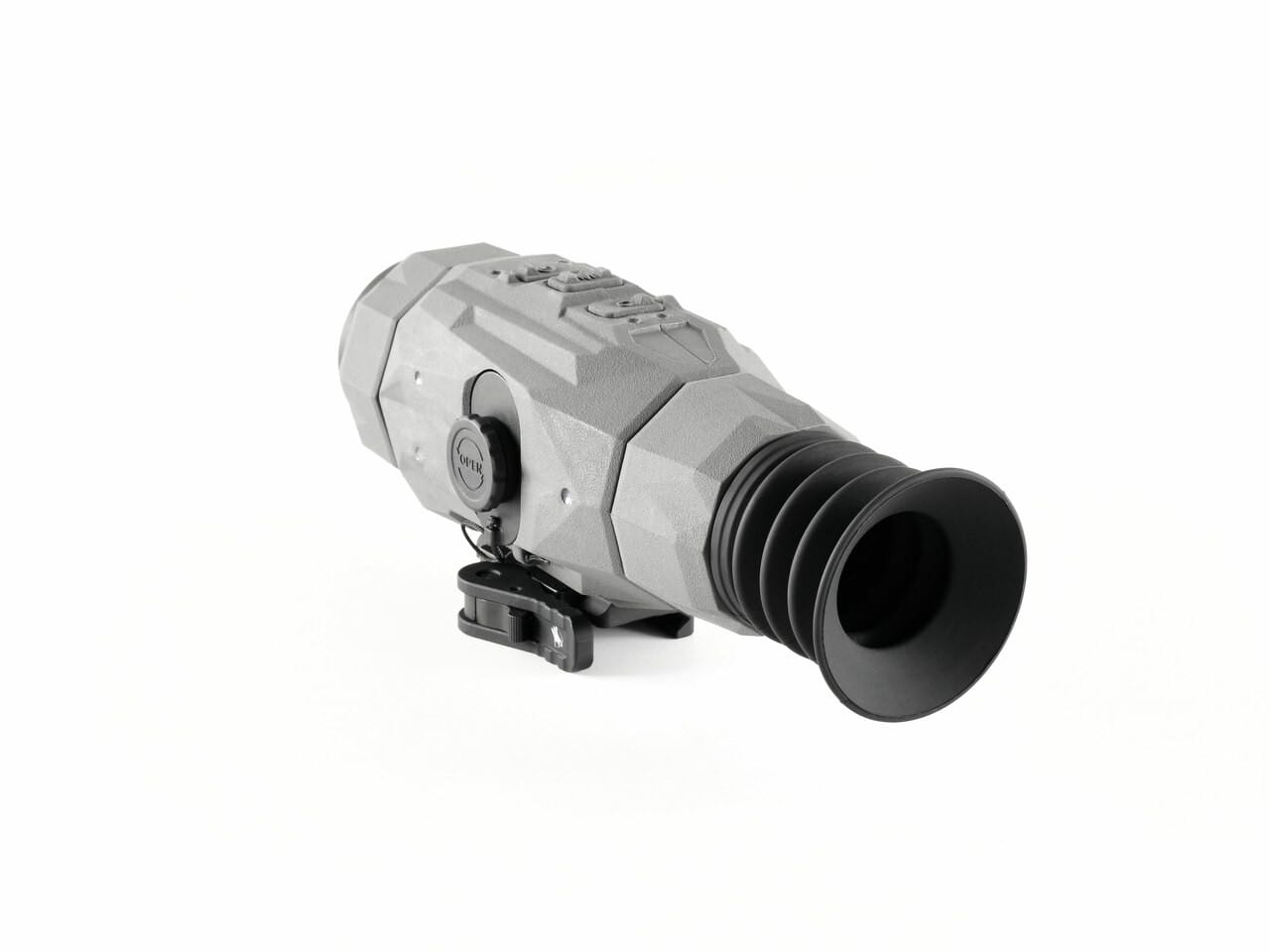

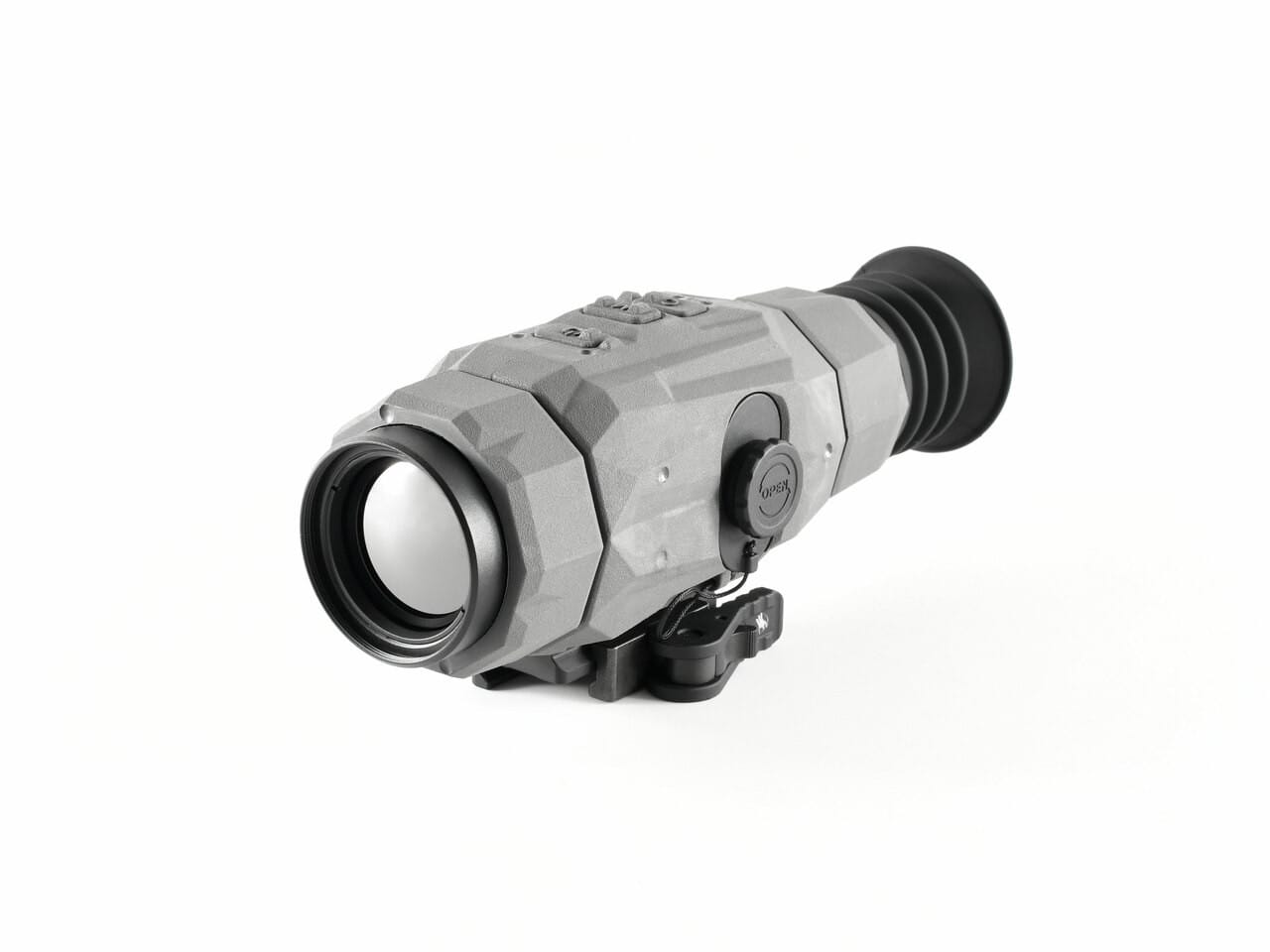

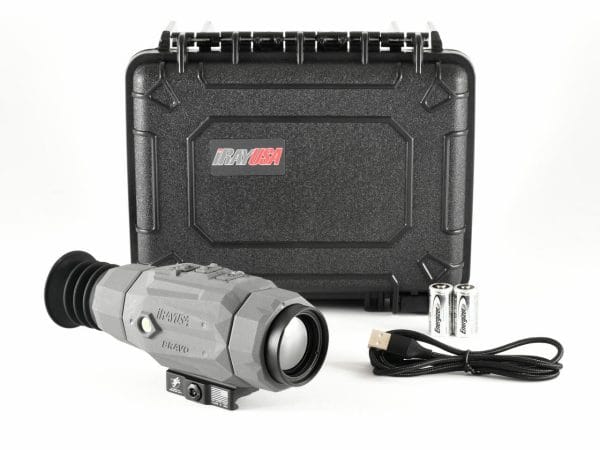

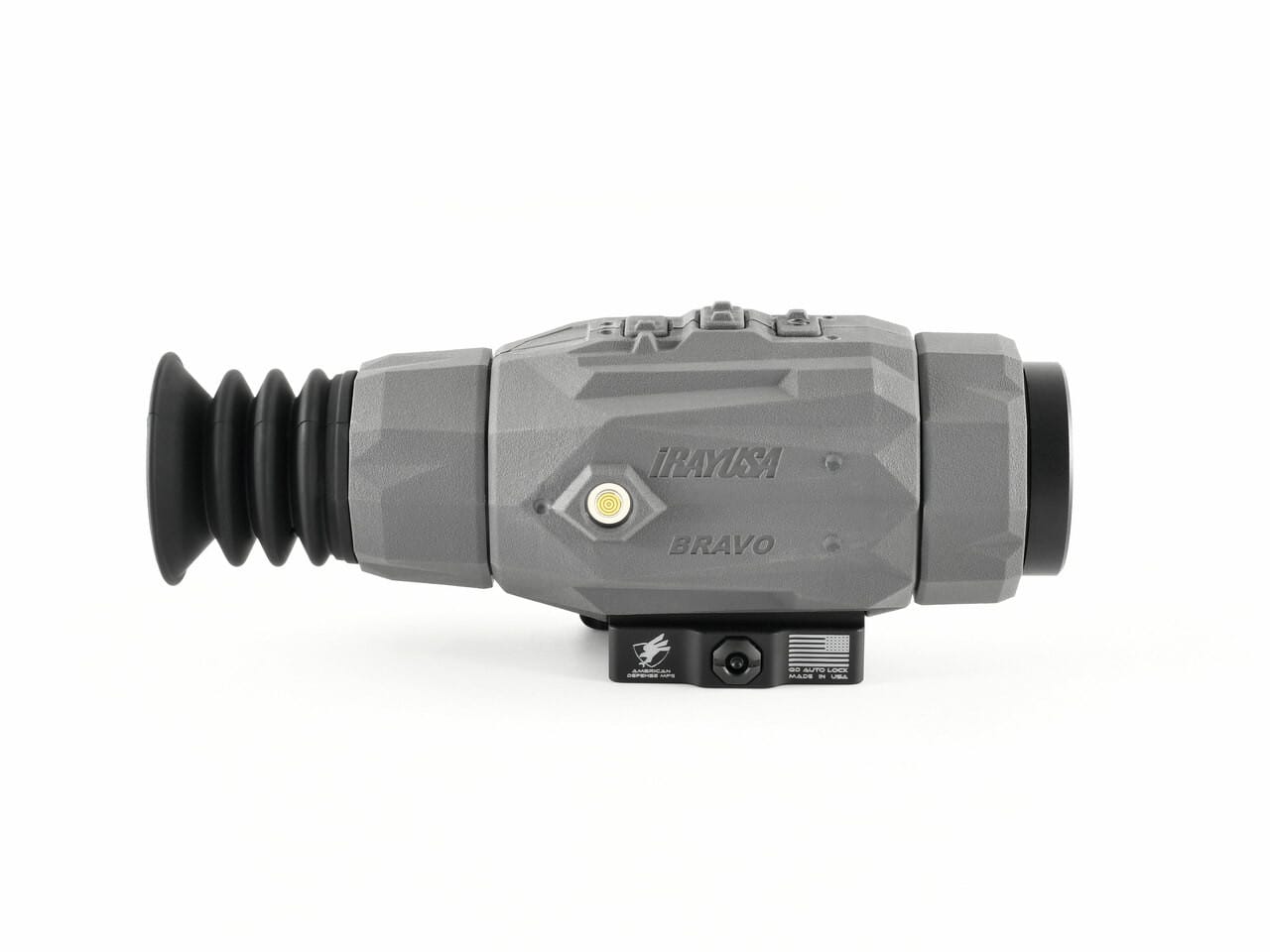

RICO BRAVO 384 35mm Thermal Weapon Sight
$3,499.00
Sensor Resolution: | 384×288 |
Optical Magnification: | 3X |
Digital Magnification: | 4X |
Objective Focal Length: | 35mm f/1.1 |
Detection Range: | 1750 Yards |
Onboard Recording: | Photo and Video, No Audio |
Device Technology: | Thermal Imaging |
Sensor Pixel Size: | 12μm |
Sensor Frame Rate: | 50hz |
Description
The RICO BRAVO is a groundbreaking thermal imaging riflescope featuring innovative ergonomics, cutting-edge connectivity, and InfiRay’s MATRIX III algorithm that pushes the boundaries of 384×288 long-wave performance. The BRAVO is optically and electronically optimized to squeeze every ounce of performance out of InfiRay’s MICRO II 12 μm sensor and F1.1 germanium lens.
iRayUSA’s all new Magnetic Omnidirectional Connector, Hard Stop Buttons, and Tactile Ridge Positioning system combine to create an unmatched user experience on a high-definition display.Additional performance-focused design features include multiple dynamic reticles, stadiametric rangefinder, image and video capture, wireless connectivity, and an American Defense Manufacturing RQD quick release mount. If you are looking for a lightweight and compact thermal optic that is designed by hunters for hunters, look no further than the RICO BRAVO.
-
Optics
Optical Magnification3X
Digital Magnification4X
Objective Focal Length35mm f/1.1
Detection Range1750 Yards
Display Resolution1024×768
Eye Relief40mm
Objective Lens MaterialGermanium
Focusing MechanismManual Focus
Display TypeAMOLED
Diopter Range-4 – +4
-
Features & Performance
Onboard RecordingPhoto and Video, No Audio
BluetoothNo
Warranty5 Years
RangefinderStadiametric
Picture-in-PictureYes
Reticle7
Run Time4+
-
Environmental Specifications
Ingress ProtectionIP67
Recoil Rating1000 g/s² (300 Win./7mm Mag)
-
Physical
Weight21.2 Oz
Height3.13 in
Length7.78 in
Width2.79 in
Housing MaterialUltra Rigid, Glass-Filled Polymer
Mounting InterfacePicatinny STD-1913 rail
-
Sensor Specifications
Sensor Resolution384×288
Device TechnologyThermal Imaging
Sensor TypeInfiRay MICRO II
Sensor Pixel Size12μm
Thermal Sensitivity<50mk
Non-Uniformity Correction (NUC)Manual, Automatic, Semi-Automatic
Spectral Response8-12 Microns
Sensor Frame Rate50hz
