Andres Industries/WO AG TILO-6Z+M 640×512

$9,995.00

Andres Industries/WO AG TILO-6Z+M Smallest, Lightest and most vestal headlamp and thermal imaging device on the market.

IN STOCK

“This makes it not only the smallest thermal imaging goggles, but also the smallest clip-on in the world.”

1 in stock (can be backordered)

SKU: 7304 Categories: , ,

Description

TILO 6Z+M WO/US version

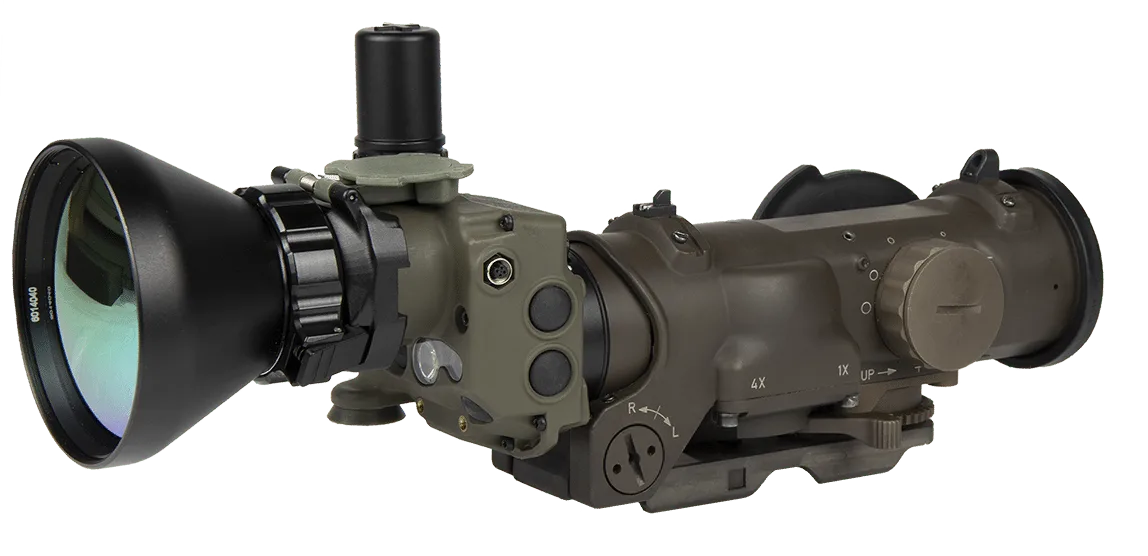

The TILO-6Z+M series is already equipped with a bayonet connection on the eyepiece side and can therefore also be used as an attachment both on short dots scopes and on the Elcan Specter DR 1–4×. This makes it not only the smallest thermal imaging goggles, but also the smallest clip-on in the world.

The TILO-6Z+M is a particularly robust police version of the TILO series made for us here at Will’s Optics for our US clientele . In accordance with the special requirements of naval units, the housing has been milled completely
from aluminum (AE), thus offering the following additional features:

  • Waterproof up to 20m
  • Bayonet adapter is part of the aluminum housing, therefore better precision and repeatability when used as clip-on thermal
  • Higher impact strength
  • Made of salt water resistant aluminum



Technical specifications:

  • 640×512 pixel 60Hz Sensor resolution microbolometer
  • <40mK temperature resolution
  • Application: -30° to +60°C / Storage -40° to +80°C
  • Water protection: IP68
  • Impact protection: MIL 810F 516 IV (26 falls from 1.22m)
  • Video Output: PAL/NTSC
  • FOV: horizontal 24° / vertical 19°
  • Dimensions:
    • Length: 58mm
    • Width: 64mm
    • Height: 67mm
  • Weight: approx. 152g without accessories
  • Screen resolution: 873×500 pixels
  • Materials:
    • Case:aluminium
    • cover eyepiece made of crystal sapphire
    • color: olive
    • To use the TILO-6z+M series as an clip-on, it has to be collimated. Authorized customers please use the following manual:
    • Cover_Anleitung_Kollimation_en_Seite_1
