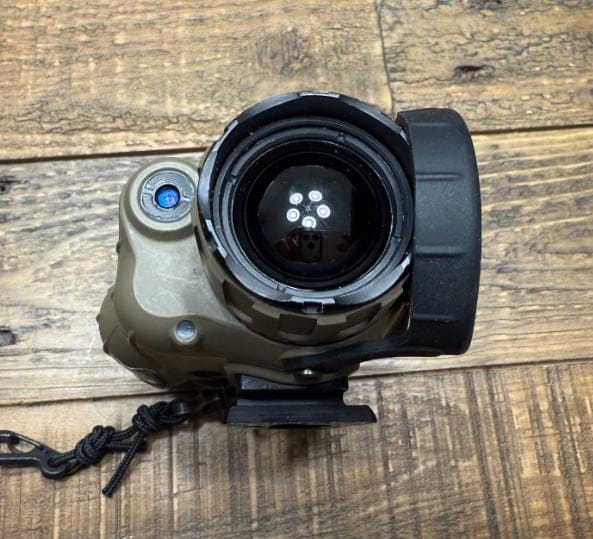

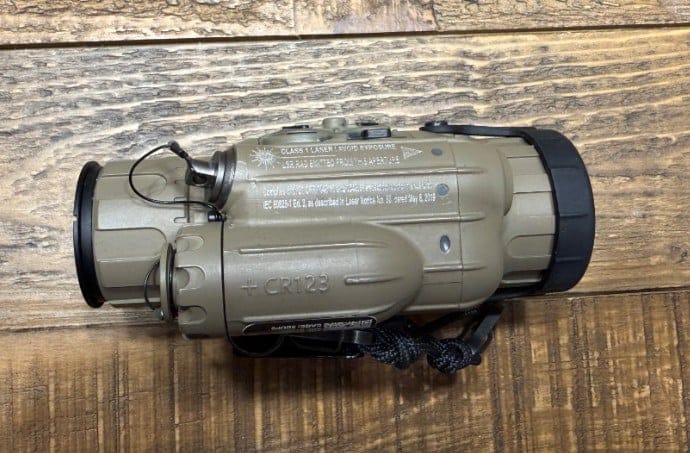

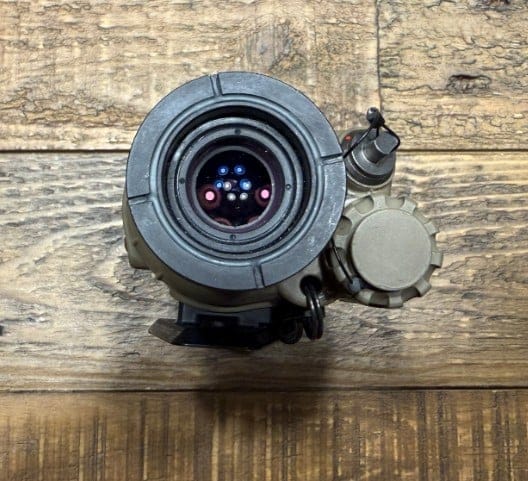

PIXELS ON TARGET VOODOO-S CLIP-ON THERMAL SIGHT (499 Brown)

Description

VooDoo-S is a multi-capable uncooled thermal imaging sight designed and optimized for small and medium caliber weapons as a true Clip-On. It also serves as a stand-alone sight, hand-held viewer, or helmet-mounted system

The VooDoo-S is the next generation of tactical thermal imaging in a ultracompact format. We’ve kept what you require, improved what you’ve asked for, and added what you’ve always desired. Feature rich, easy to use. All under 10-ounces.

VooDoo-S provides the sharpest thermal images on the market, utilizing a true shutter-less 12-micron, 640 x 480 PIXELS ON TARGET core powered by a BAE Systems focal plane array and advanced thermal image processor.

Optically and electronically optimized, the VooDoo-S sight surpasses current systems fielded by no small margin. With an operational runtime of more than two hours and a system weight of 10 ounces, the VooDoo-S sight exceeds competitive products specifications and performance. A simple menu function featuring a single button press allows for essential operation of the VooDoo-S sight eliminating the need to remember locations on the device for different functions while operating the system in darkness. Features such as inherent weapons use and user selectable electronic reticles support wide ranging mission with clear definition.



Weight (without batteries) 10 oz

Length 4.0 in (102 mm) (w/o lens cover or eyecups)

Width 2.4 in (61 mm)

Height 1.7 in (44 mm)

Power: Power source (1) CR 123 lithium battery or USB Outlet

Power up: 3 seconds

Battery operating life @25°c 2.5 hrs @ 60 Hz

Environment Operating temp -40°F (-40°C) to 140°F (60 °C)

Storage temp -40°F (-40°C) to 160°F (71 °C)

Immersion Tested at 33 ft for 2 hours

Climatic zones Hot, basic

Imaging characteristics:

Optical focus Manual

Diopter adjust Manual

Optical magnification 1X

Digital zoom .5X/1X/2X/4X

Field of view 19° diagonal (15° horizontal 11° vertical)

Optical co-use Unity up to ≤ 8x

Aimpoint: 0.5 MOA

Reticles: Crosshair, MIL-DOT, SVD, Custom

Minimum focus distance 500 mm

Range 80% positive (60 Hz), 0.75m2 size target Detect 1100 m

IR camera:

Sensor Uncooled microbolometer

Wavelength 8-12 μm

Pixel pitch 12 μm

Pixel format 640 x 480 array

Refresh rate 60 Hz

Nedt 50mK @F/1

Display:

Color Monochrome

Size 640 x 480

Imaging characteristics:

Polarity: Black Hot/White Hot/White Edge Detect/Black Edge Detect/Dynamic

Eye relief 40 mm

Diopter adjustment +/- 2.0 diopters

Compass Digital magnetic compass Yes

NIR Eye Safe 0.7 mW laser pointer (850 nm)

Image storage Capability 100 snapshots

Image format 8-bit uncompressed bitmap



Kit includes:

VooDoo-S scope

Soft Case

LEMO-BNC Cable (Video Out)

LEMO-USB Cable

Eye Cup

BNC to BNC Coupler

3V CR 123 Battery

Quick Reference Guide

VooDoo-S Manual

Operation/Download Software

VooDoo-S is a multi-capable uncooled thermal imaging sight designed and optimized for small and medium caliber weapons as a true Clip-On. It also serves as a stand-alone sight, hand-held viewer, or helmet-mounted system.

VooDoo-S provides the sharpest thermal images on the market, utilizing a true shutter-less 12-micron, 640 x 480 PIXELS ON TARGET core powered by a BAE Systems focal plane array and advanced thermal image processor.

The smallest thermal monocular available in the market

Shutterless Calibration (Manual Calibration if Desired)

NIR eyesafe pointer

Ruggedized design with intuitive menu operation

RS-170 video output

Configured with a Wilcox Dovetail mount.

Weapons and helmet mountable

Greatly enhances vision at night or in dust or smoke conditions

Seamless operational transition from observation to a targeting device

Versatility to support a wide range of missions

Superior image quality

Available for purchase by Federal, Military, State and Local Law Enforcement and US Citizens
