NR Trailblazer

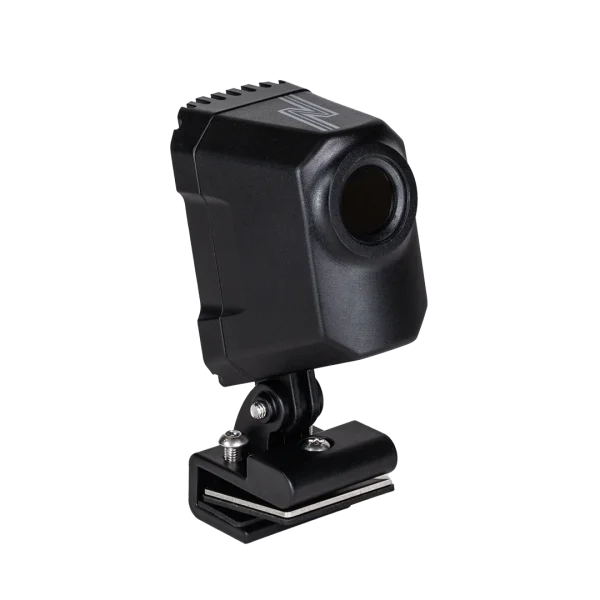

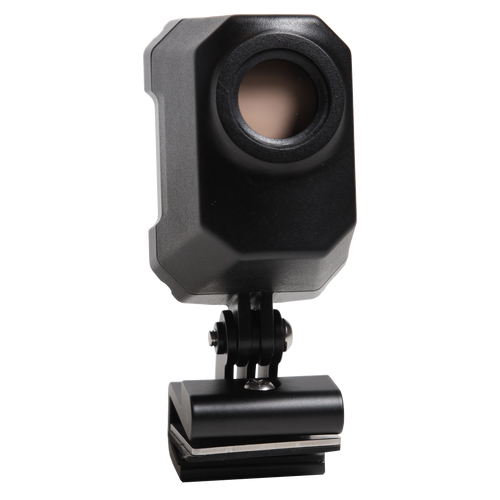

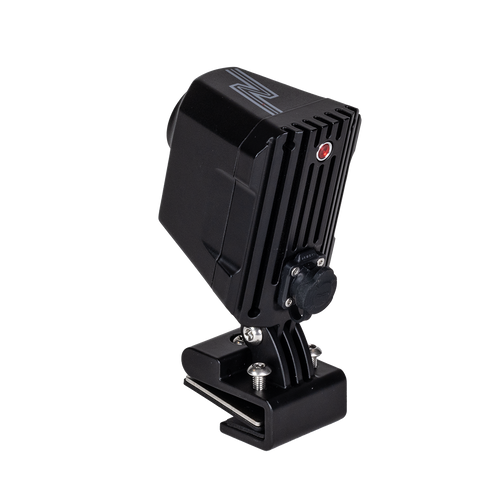

NightRide Trailblazer 384 x 288 – 13mm lens

$1,895.00

Install is a pain-free 5 minutes, and can be popped onto any vehicle – from your car or truck to ATV or motorcycle!

SKU: 21883 Categories: ,

Description

The NightRide Trailblazer is a small, lightweight infrared camera, using heat signatures to give you a view 1/4 miles down the road through dust, rain, snow, fog, smoke, and complete darkness. The perfect device for any commercial driver, daily driver or outdoorsman – the versatility and ease of use gives you thermal sight wherever you roam.

Install is a pain-free 5 minutes, and can be popped onto any vehicle – from your car or truck to ATV or motorcycle!

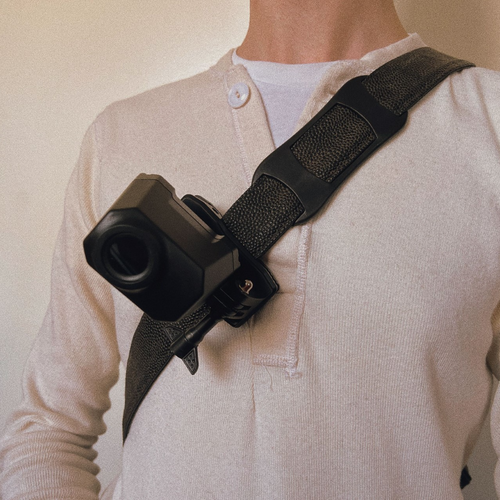

Or can be taken on foot with a GoPro mount attached to your helmet, or clipped onto a backpack when attached to an auxiliary battery pack!

NightRide

NightRide Trailblazer Thermal Camera – Clear Vision Anywhere – NightRide Thermal Inc
384 x 288 – 13mm lens
The NightRide Trailblazer is a small, lightweight infrared camera, using heat signatures to give you a view 1/4 miles down the road through dust, rain, snow, fog, smoke, and complete darkness. The perfect device for any commercial driver, daily driver or outdoorsman – the versatility and ease of use gives you thermal sight wherever you roam.

Install is a pain-free 5 minutes, and can be popped onto any vehicle – from your car or truck to ATV or motorcycle!

Or can be taken on foot with a GoPro mount attached to your helmet, or clipped onto a backpack when attached to an auxiliary battery pack!

MAIN FEATURES

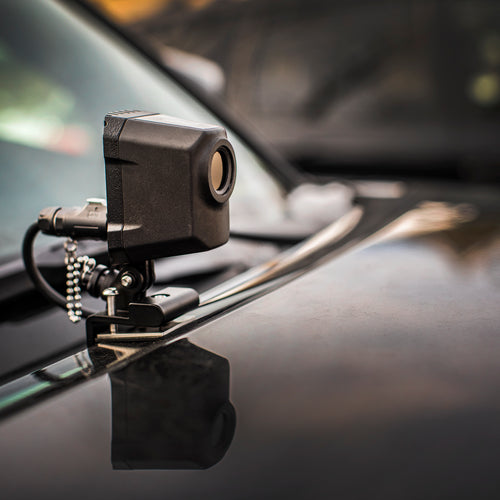

  • Vehicle Hood Mount Included
  • Wi-Fi Hotspot connection to display
  • Portable with auxiliary battery pack (Not Included)
  • 5 min. Install
  • Always recording / Event recording

ACCESSORIES

  • Hood Mount – Standard
  • Hood Mount Tools and Accessories
  • Power Cable
  • Velcro Tie (4x)
  • Ring Connections

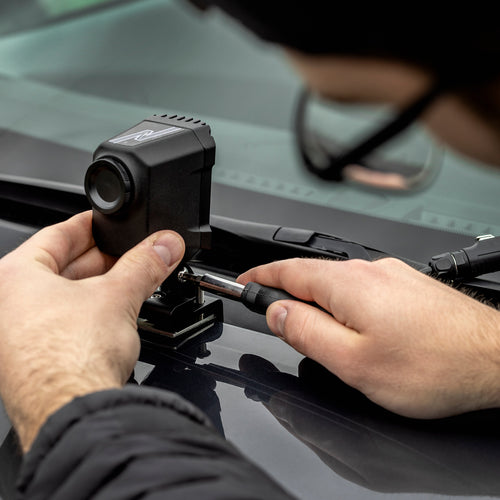

MOUNTING THE Trailblazer

https://i.shgcdn.com/958373a1-5c2c-4f8b-b8de-1e60a928cd6a/gif2video/-/format/webm/-/quality/lighter/

SPECIFICATIONS
  • Dimensions: 100mm x 55mm x 80mm
  • Right Angle Dimensions: 86mm
  • Operating Temperature Range: -40°F to +140°F
  • Sealed Design: IP69
  • Sensor Type: 384 x 288 uncooled Micro-bolometer.
  • Field of View: 28° (H)
  • FPS: 25hz
  • Power Consumption: 4W
  • Power Requirements: 12-16 VDC
Detection Recognition Identification

440m

110m

55m

APPLICATIONS

Versatile mounting options provide a variety of exhilarating and illuminating experiences, including but not limited to:

– full vision for low/no light driving situations

– greatly increased road visibility for inclement/extreme weather

– accident avoidance and recording

– peace of mind for new or elderly drivers

– view of campsite for wildlife and security

– awesome footage of outdoor sports (snowboarding, skiing, mountain biking etc)

Not Certain Which NightRide to Choose?

*Table scrolls Horizontally

Model Resolution Detection* (in Yards) Recognition* (in Yards) Identification* (in Yards) Field of View WiFi Frequency to Display Wired via Ethernet Remote Control Mounting Sample Use Cases
NightRide Trailblazer Standard 480 120 60 28⁰ 2.4 Ghz No No GoPro, on/off vehicle Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting
NightRide Trailblazer w Ethernet Standard 480 120 60 28⁰ 2.4 Ghz Yes No GoPro, on/off vehicle Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting
NightRide Trailblazer HighRes 640 High 660 180 90 28⁰ 5 Ghz Yes No GoPro, on/off vehicle Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting
NightRide Sentinel Standard 480 120 60 28⁰ 2.4 Ghz Yes Hardwired Remote Control Pan Permanent on LightBar or Vehicle Roof Public safety, security, remote surveillance
NightRide Sentinel 640-13 High 660 180 90 28⁰ 5 Ghz Yes Hardwired Remote Control Pan Permanent on LightBar or Vehicle Roof Public safety, security, remote surveillance
NightRide PRO-SL (Ring or Cableless) Standard 480 120 60 28⁰ 2.4 Ghz No Manual Pan/Tilt Permanent on Police Spotlight Police patrol cars
NightRide PRO-SL w Ethernet (Ring or Cableless) Standard 480 120 60 28⁰ 2.4 Ghz Yes Manual Pan/Tilt Permanent on Police Spotlight Police patrol cars
NightRide PRO-SL 640 (Ring or Cableless) High 660 180 90 28⁰ 5 Ghz Yes Manual Pan/Tilt Permanent on Police Spotlight Police patrol cars
NightRide 360 Classic 384-13 Standard 480 120 60 28⁰ 2.4 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
NightRide 360 Classic 384-19 Standard 660 180 90 19⁰ 2.4 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
NightRide 360 Classic Telephoto 384-35 Standard 1200 330 165 10⁰ 2.4 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
NightRide 360 High Res – 640-19/Plus 640-19 High 960 240 120 23⁰ 5 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
NightRide 360 High Res Telephoto 640-35/Plus 640-35 High 1750 440 220 12⁰ 5 Ghz Yes Wireless Remote Control Pan/Tilt

* Detection

NightRide Trailblazer Thermal Camera – Clear Vision Anywhere – NightRide Thermal Inc

* Recognition

NightRide Trailblazer Thermal Camera – Clear Vision Anywhere – NightRide Thermal Inc

* Identification

NightRide Trailblazer Thermal Camera – Clear Vision Anywhere – NightRide Thermal Inc
